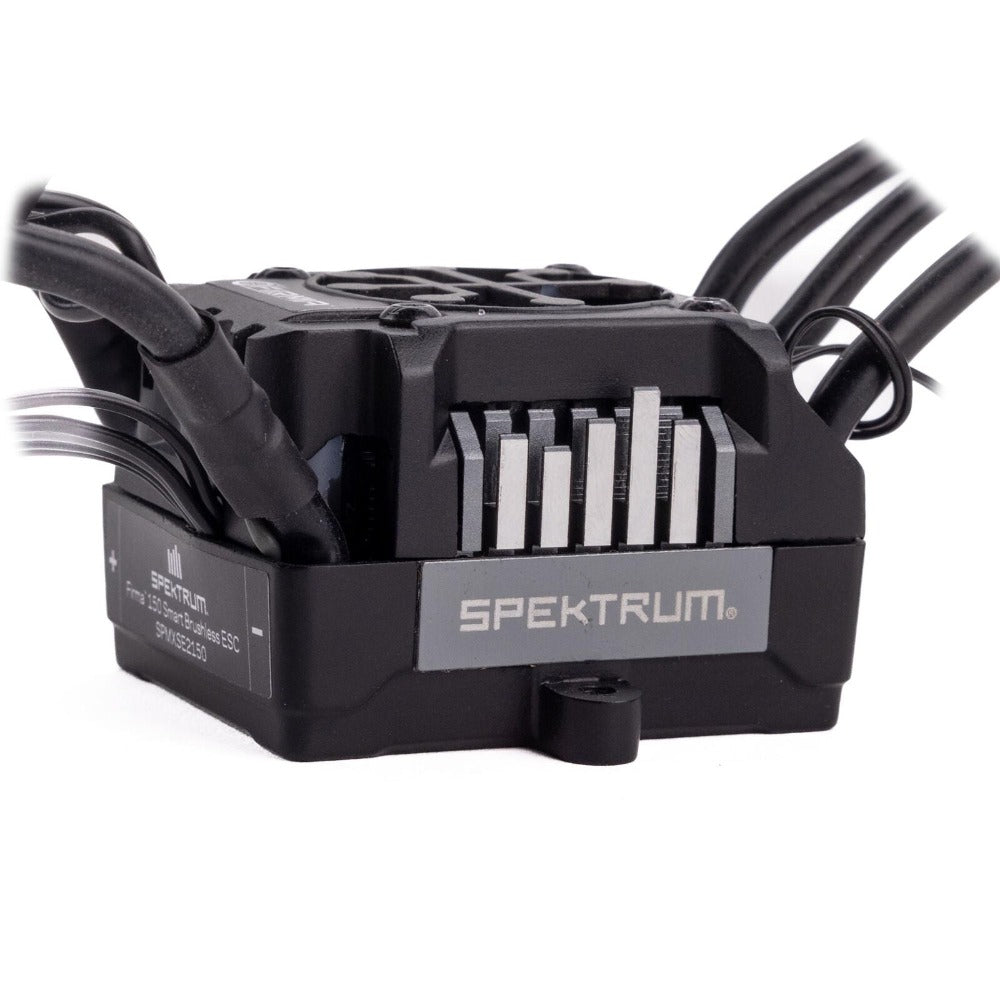

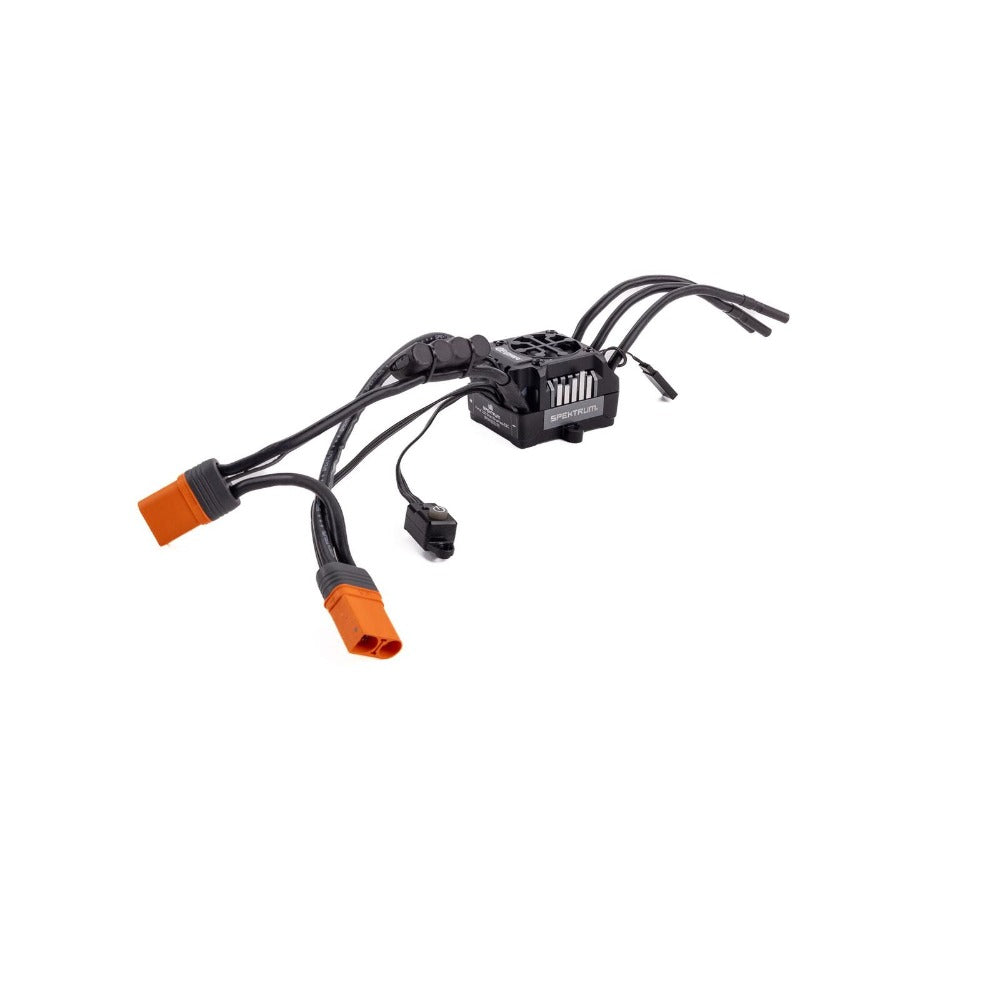

Spektrum Firma 150A Brushless Smart V2 ESC (3-6S)

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

FEATURES:

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Compatible with Arrma Kraton 6s, Typhon 6S and other RC vehicles.

SPECIFICATIONS:

• Part #: SPMXSE2150 (Replaces SPMXSE1150)
• Input Voltage: 3S - 6LiPo
• Brakes: Yes

• Programmable: Yes

• Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen

• Maximum Burst Current: 950A

• Maximum Continuous Current: 150A

• Battery Input Lead: IC5

• Product Width:

• Without tabs: 1.9" (47.5mm)

• With tabs: 2.3" (59.5mm)

• Technology: Smart

• Forward: Yes

• Reverse: Yes

• Amperage: 120A or larger

• BEC Type: Linear

• Max Input Voltage: 22.2V

• Application: Surface

• Auto Cutoff: Yes

• BEC Continuous Current: 4A

• Low-Voltage Cutoff Programmable: Yes

• Output Connector: 4mm Bullet

• Overload Protection: Yes

• Product Weight: 8.4oz (238g)

• BEC: Yes

• BEC Voltage: 6V

• Motor Output Lead: 6.5mm

• Product Application: Surface

• Product Height: 1.5" (38.5mm)

• Connector Type: IC5

• ESC Type: Brushless

• Product Length: 2.3" (58mm)

HELPFUL LINKS:

• Spektrum Firma 150A ESC Manual
• Smart ESC Compatibility Chart
• Smart ESC Programming Chart
• Spektrum Firma SmartLink Update Instructions

INCLUDES:

(1) Spektrum Firma 150A Brushless Smart ESC
(1) Spektrum Smart Sticker Sheet
(1) Product Manual

MORE INFO:

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

ONE-WIRE TELEMETRY - No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.
