Skystars F722 Mini HD Pro Flight Controller (20x20 / 6 Uarts / 3-6S)

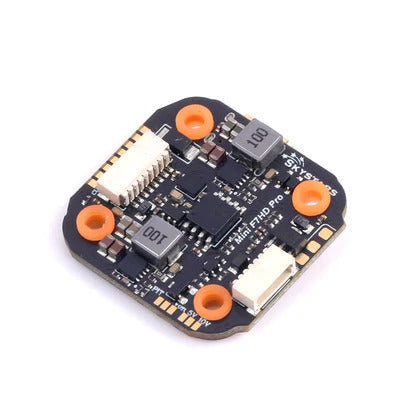

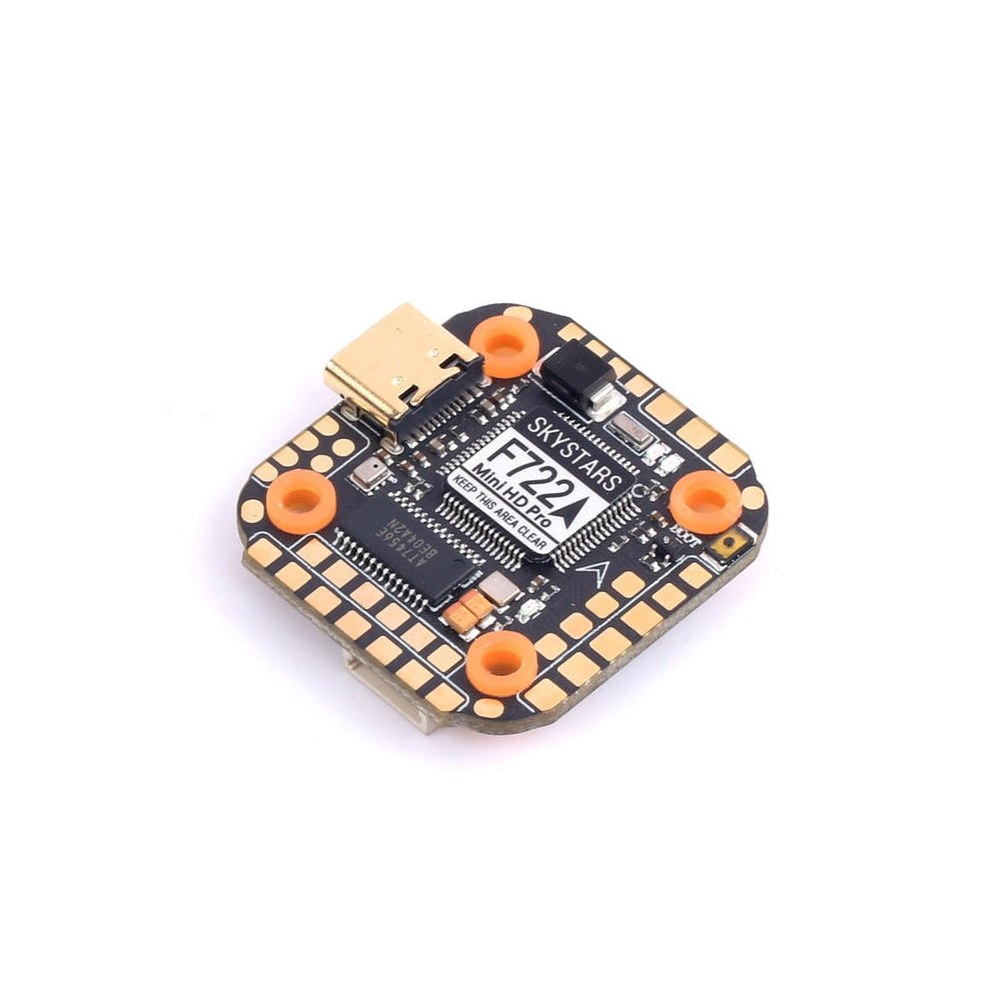

The Skystars F722 Mini HD Pro flight controller features an F7 processor, 6 Uarts, and a 10V 2A regulator for the Caddx Vista, DJI Air Unit, or other VTXs.
SPECIFICATIONS:
- MCU: STM32F722RGT6 216MHz
- IMU: BMI270 (SPI)
- OSD: Betaflight OSD & DJI HD OSD (UART6)
- UARTS: 6
- Barometer: YES
- Buzzer Pad: YES
- BEC: 5V 2A & 10V 2A
- Input Voltage: 3-6S LiPo
- Blackbox: 16MB
- Firmware: SKYSTARSF7HDPRO
- Dimensions: 35x28x7mm
- Mounting Holes: 20x20mm / M3 or M2
- Weight: 4.8g
HELPFUL LINKS:
INCLUDES:
(1) Skystars F7 Mini HD Pro Flight Controller
(4) Rubber Dampeners (Red)
(4) Rubber Dampeners (Orange)
(2) 8-Pin Cable
(1) 6-Pin Air Unit Cable
NOTES:
- Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.

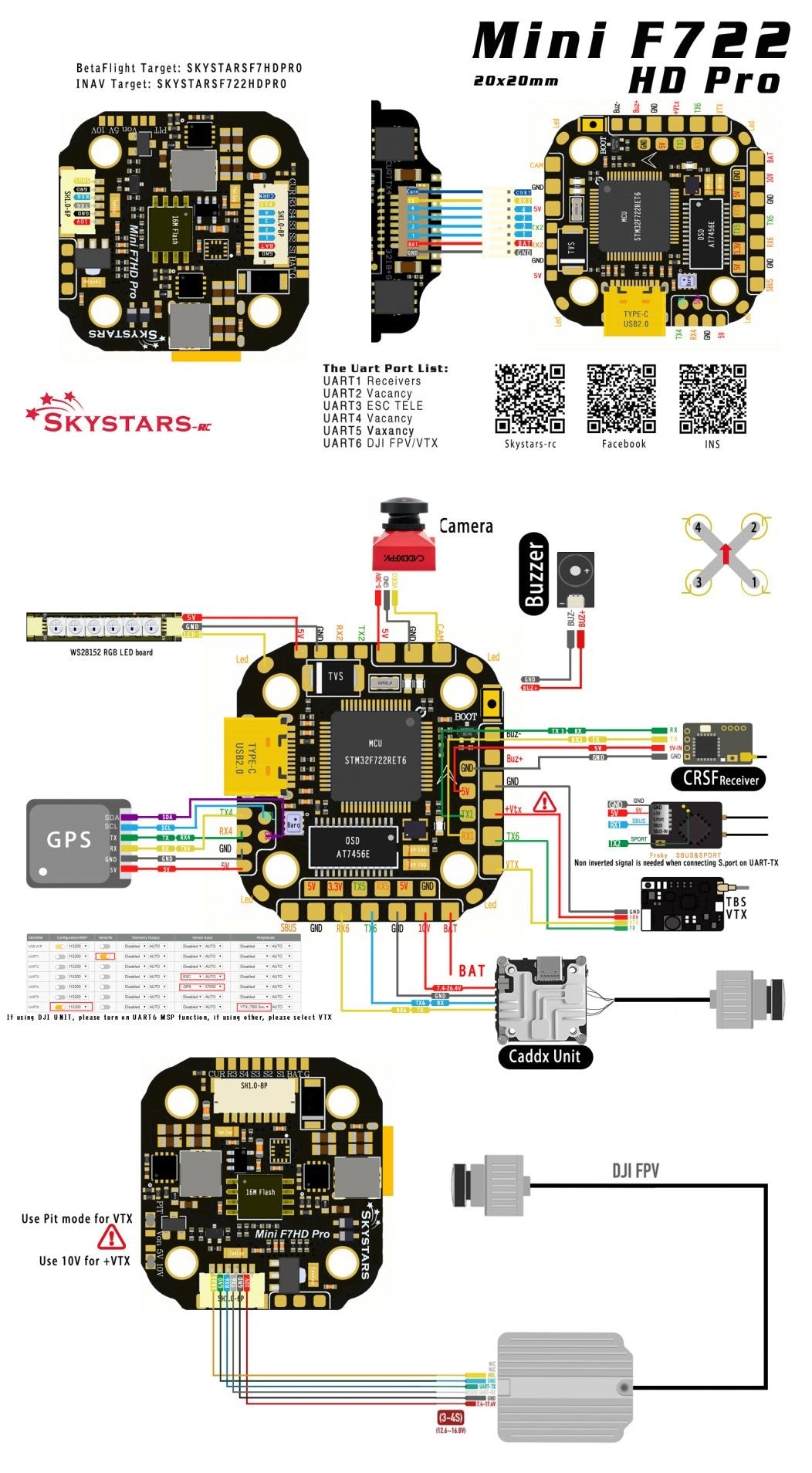

- Please make sure your DJI video transmitter's cable matches the flight controller's pinout.
