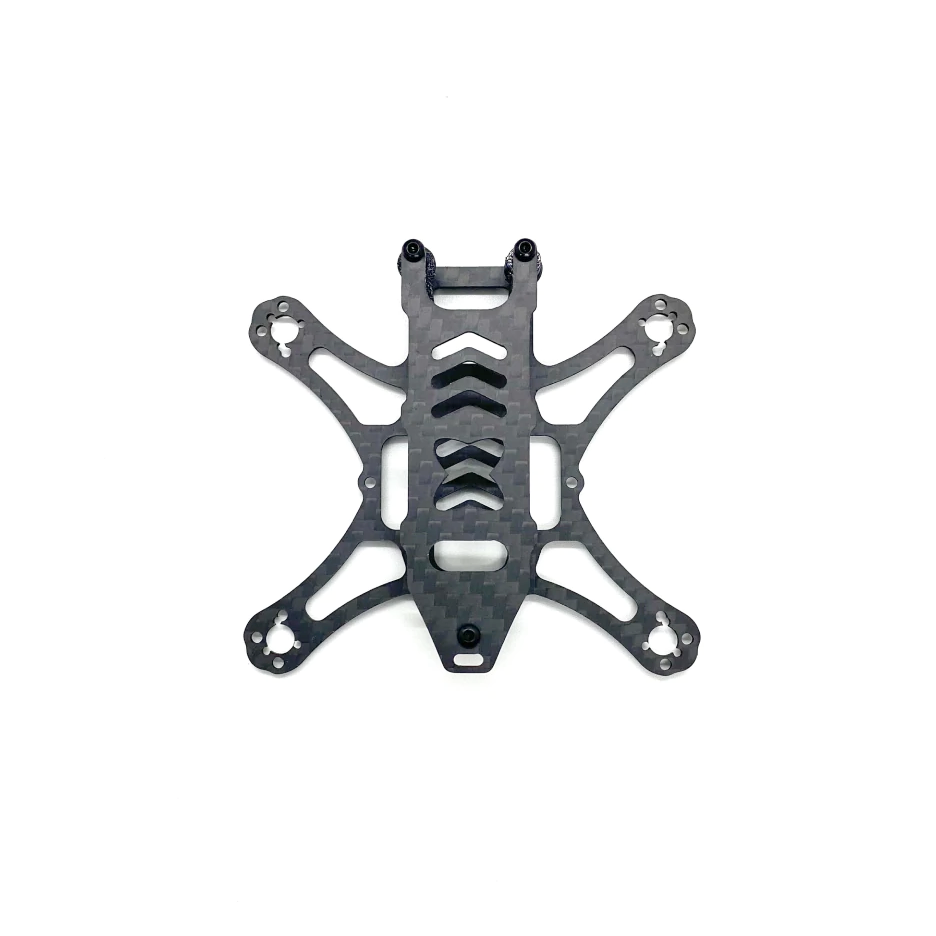

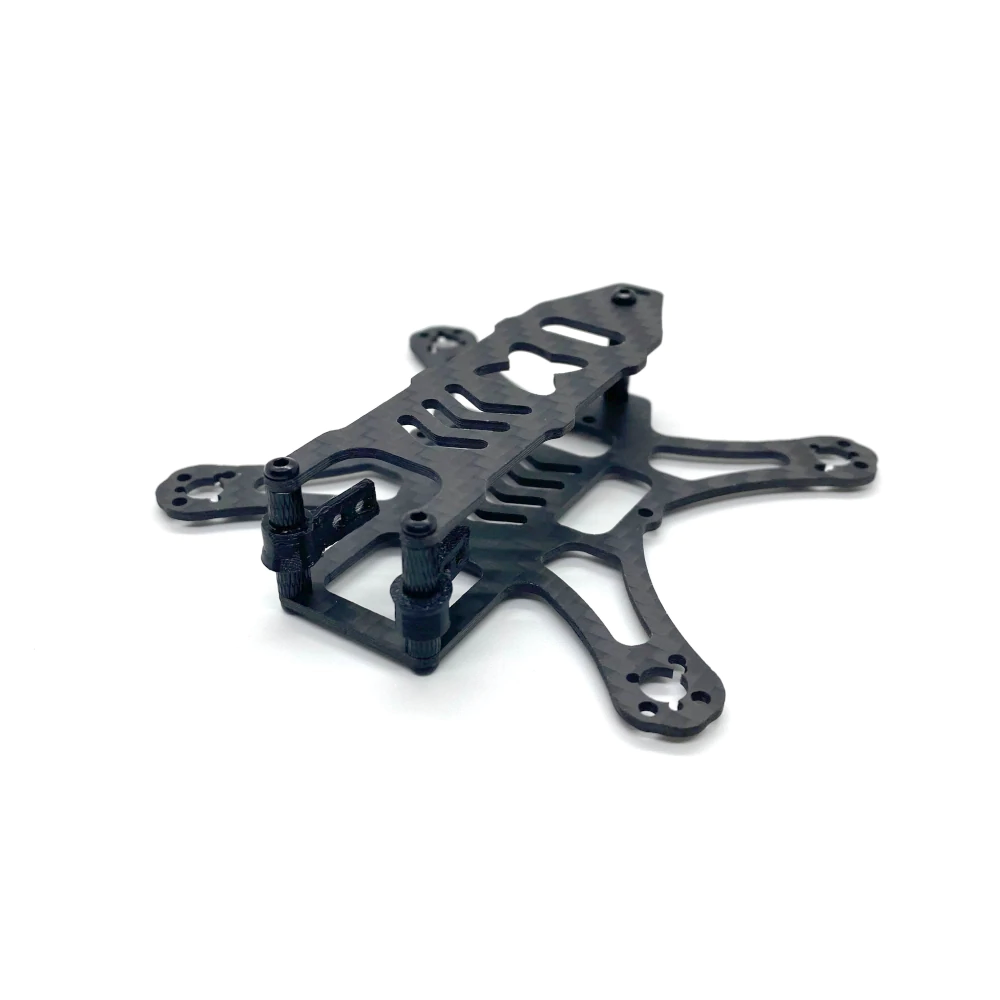

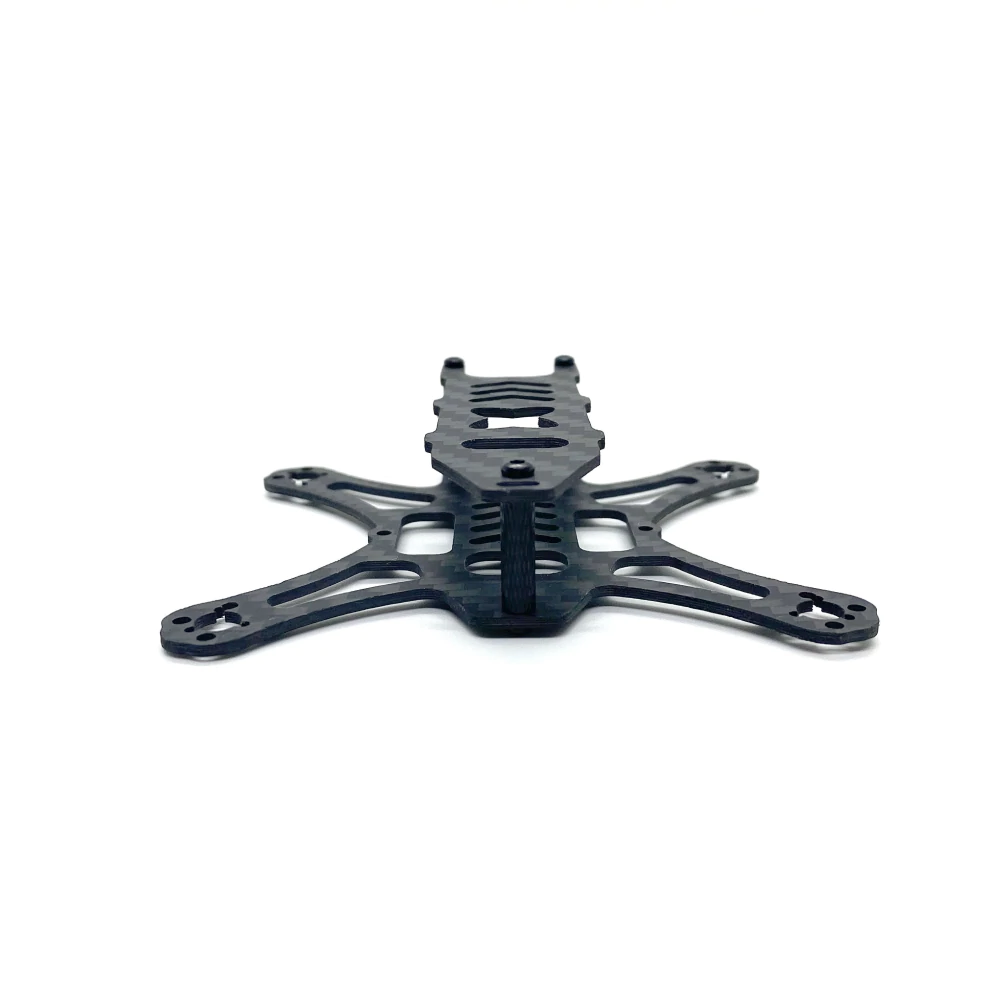

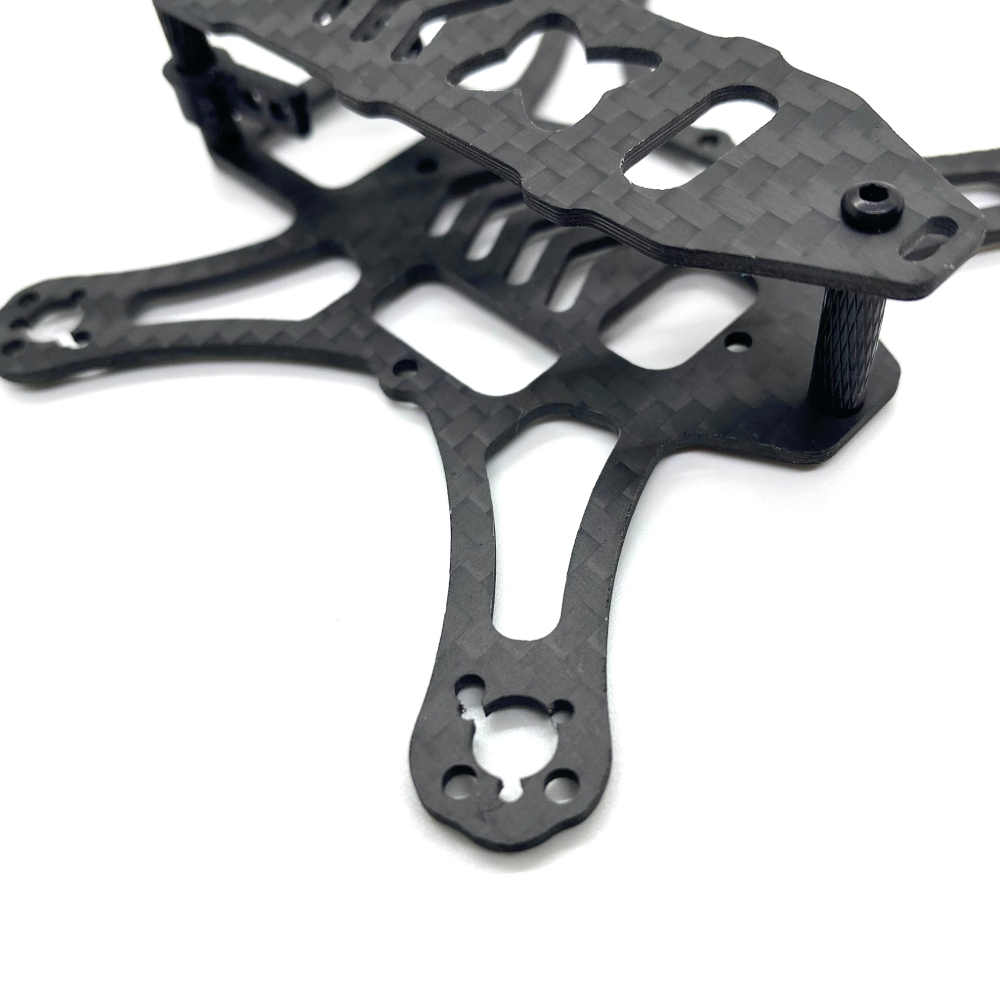

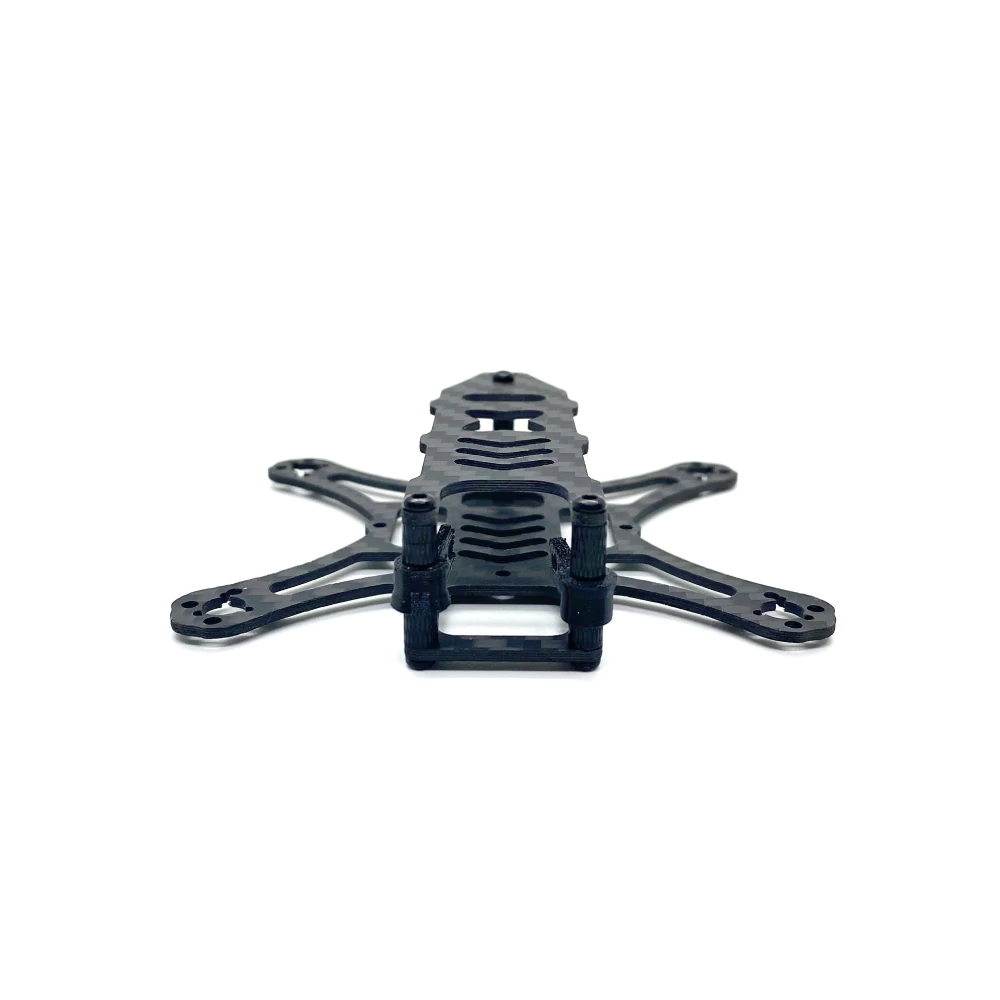

Volare Atom-Lite S1.6 FPV Drone Frame Kit (1.6" / 90mm)

The Atom-Lite S1.6 frame kit is yet another great kit in the exclusive, Volare line of frames. This frame is in the "toothpick" category, which combines all the best features that an FPV micro drone should offer and makes the building process as seamless as possible.

FEATURES:

• Full 3K High-Quality Carbon Fiber
• Fits Multiple Motor Sizes & Types

• Top Battery Mount
• 90mm Wheelbase Frame
• Fits Nano FPV Cameras
• Supports 1.6" (40mm) Propellers
• Fits 25x25 AIO Boards

SPECIFICATIONS:

• Wheelbase: 90mm
• Plate Thickness: 1.5mm
• Motor Hole Pattern: 3-Hole or 4-Hole
• FC Mounting Holes: 25mm x 25mm
• Battery Position: Top or Bottom Mount
• Motor Sizes: 08xx to 12xx Motors
• Camera Size: Nano FPV Cameras
• Propeller Size: 1.6" / 40mm

HELPFUL LINKS:

• Exploded View - Diagram

INCLUDES:

(1) Atom-Lite Top Plate
(1) Atom-Lite Bottom Plate
(3) M2 x 15mm Standoffs
(6) M2 x 6mm Screws
(1) Camera Mount (3D Printed with TPU)
(1) Battery Pad
(2) Volare 16 x 120mm Battery Straps
(1) Exploded View Diagram
(1) Volare Sticker

NOTES:

• Always apply blue thread-locker to all screws to keep them from falling out.
