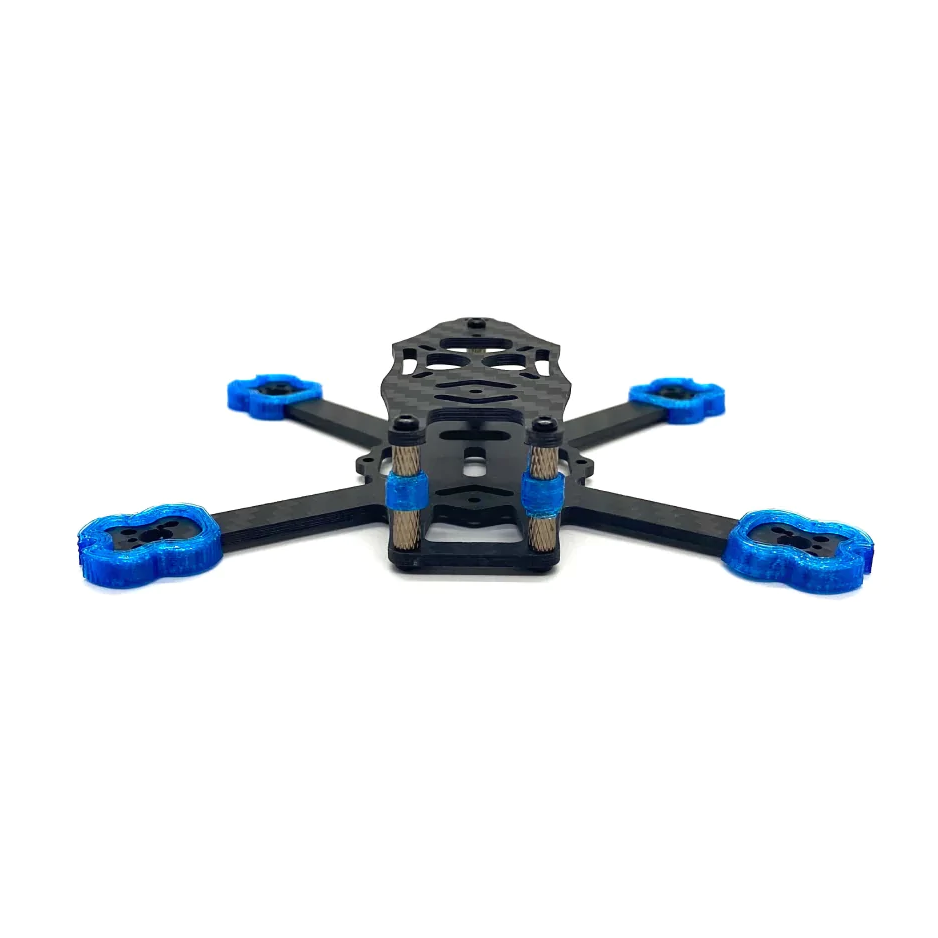

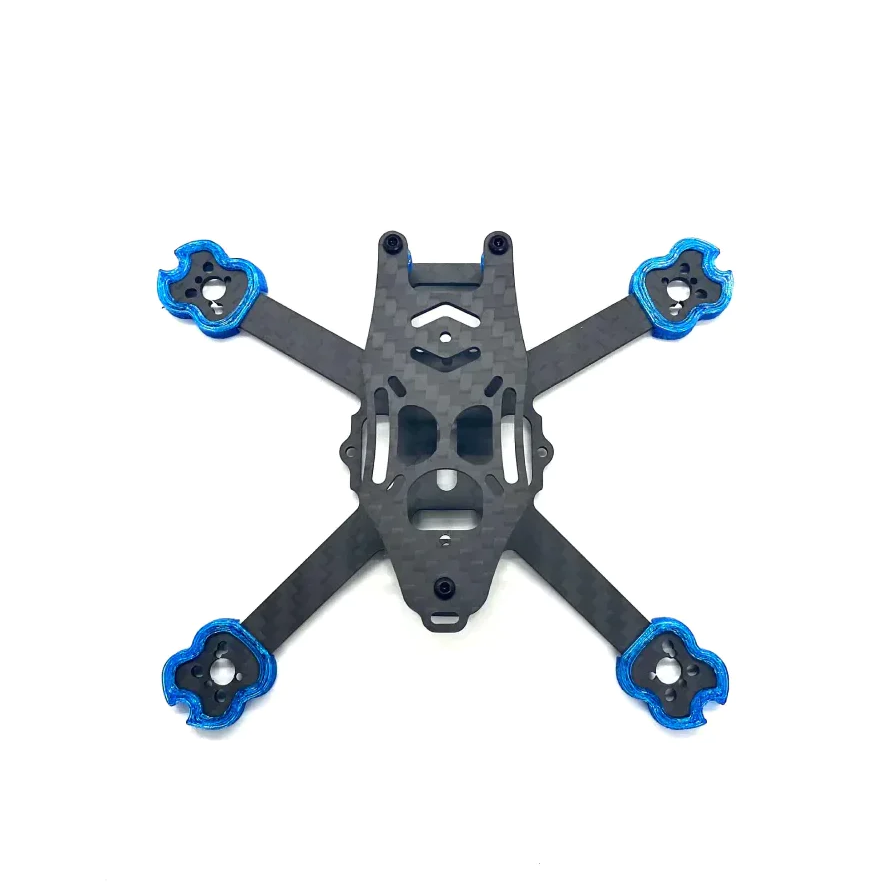

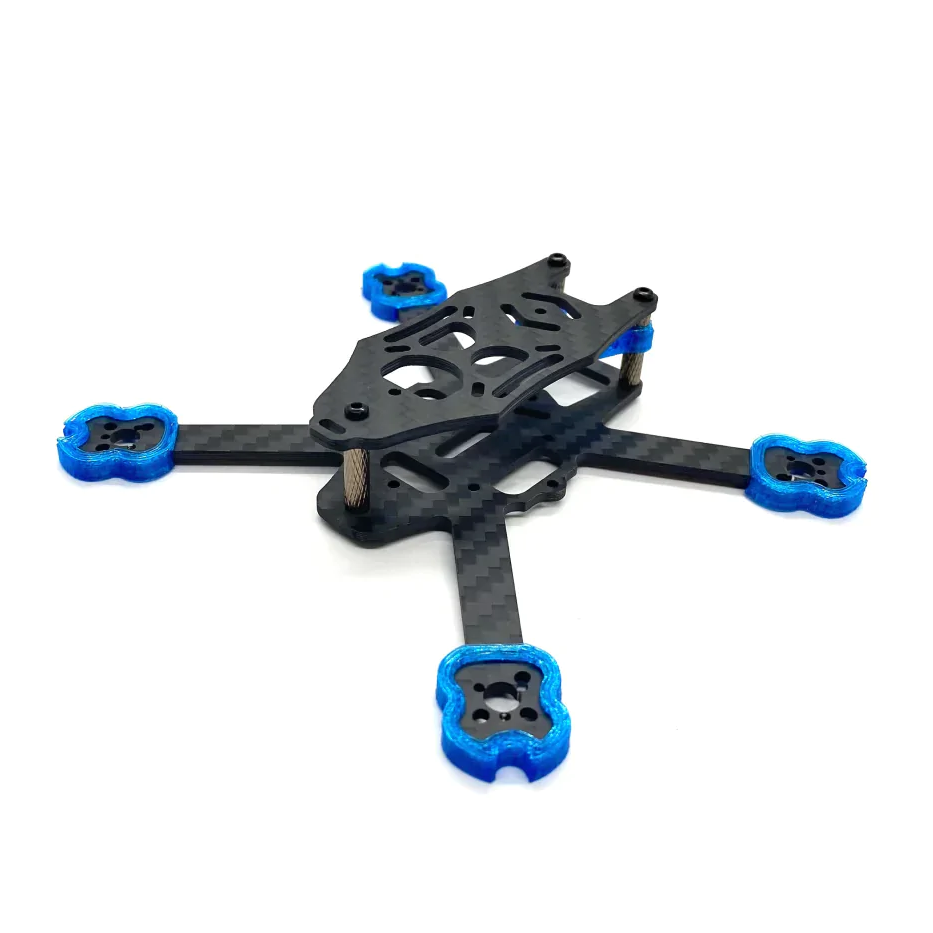

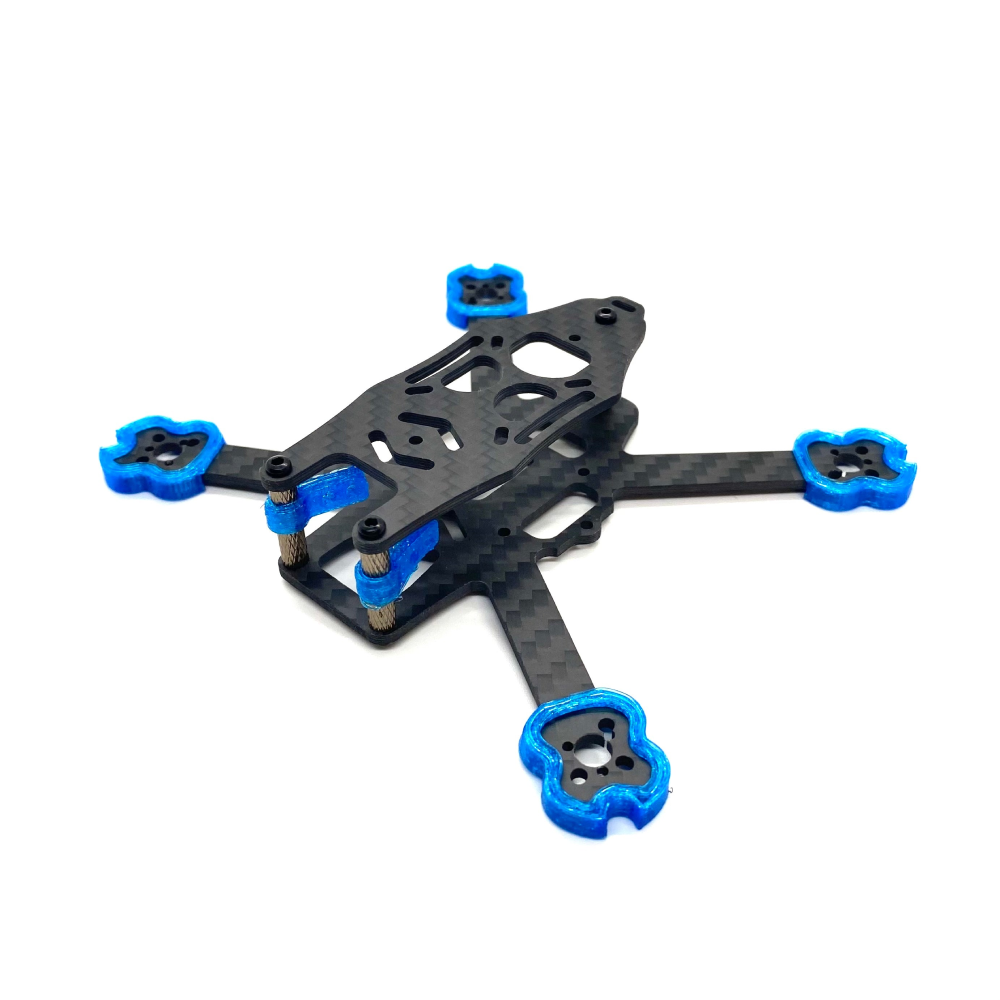

Volare Axiom S2.5 FPV Drone Frame Kit (2.5" / 115mm)

The Axiom 2.5" frame kit is one of the first in a line of exclusive Volare frames, designed to fit the needs of the modern FPV drone pilot. This frame is in the "toothpick" category, which combines all the best features an FPV micro drone should offer, to make the building process as seamless as possible.

FEATURES:

• Full 3K High-Quality Carbon Fiber
• Multiple-Sized Hole Patterns for Various Board-Mounting Options
• Extra Holes on Top Plate for VTx or Rx
• Fits Multiple Motor Sizes & Types

SPECIFICATIONS:

• Wheelbase: 115mm
• Plate Thickness: 2mm
• Motor Hole Pattern: 3-Hole or 4-Hole
• FC Mounting Holes: 20mm x 20mm or 25mm x 25mm
• Extra Top-Plate Mounting Holes: 16mm to 20mm
• Battery Position: Top or Bottom Mount
• Motor Sizes: 08xx to 12xx Motors
• Camera Size: Nano FPV Cameras
• Propeller Size: 2.5" / 65mm

HELPFUL LINKS:

• Exploded View - Diagram

INCLUDES:

(1) Axiom Top Plate
(1) Axiom Bottom Plate
(6) M2 x 6mm Screws
(3) M2 x 16mm Standoffs
(2) Volare Battery Straps (16 x 120mm)
(2) 3D Printed TPU Camera Mounts
(4) Arm Bumpers (3D Printed with TPU)
(1) Battery Pad

NOTES:

• Always apply blue threadlocker to all screws to keep them from falling out.
