SKU: 70619862

RadioMaster Nomad Dual 1W Gemini Xrossband ExpressLRS Module

$54.99

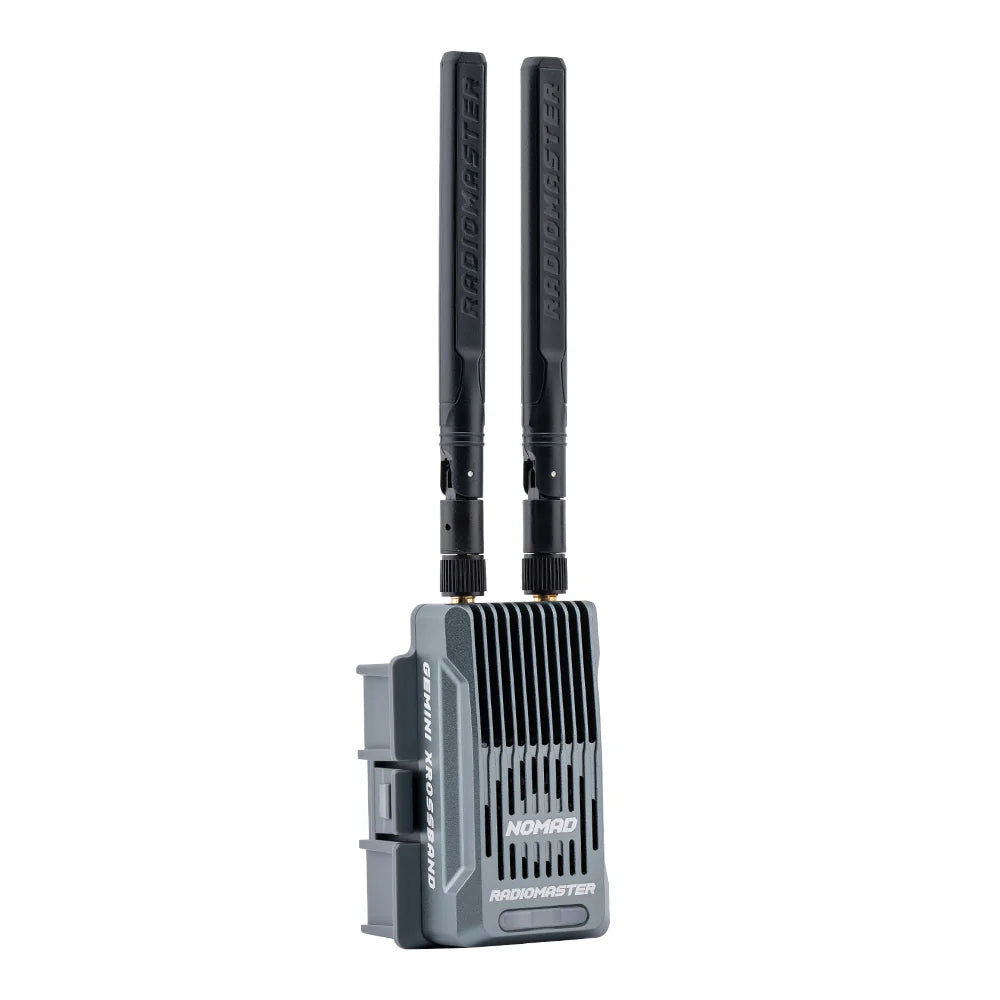

RadioMaster Nomad Dual 1W Gemini Xrossband ExpressLRS Module

The Nomad is equipped with dual 3rd-generation Semtech LR1121 transceivers, allowing for operation with both 2.4GHz and 868/900MHz frequencies using the advanced Gemini Xrossband protocol. This technology enables the transmitter to send packets on both bands simultaneously, reducing the risk of packet loss due to interference.

With dual 1-watt dual-band transceivers, the Nomad has exceptional range and revolutionary interference rejection for demanding environments providing enhanced performance and reliability. The Nomad comes with a micro module and nano module adapter, ensuring it works with most radios on the market today.



FEATURES:

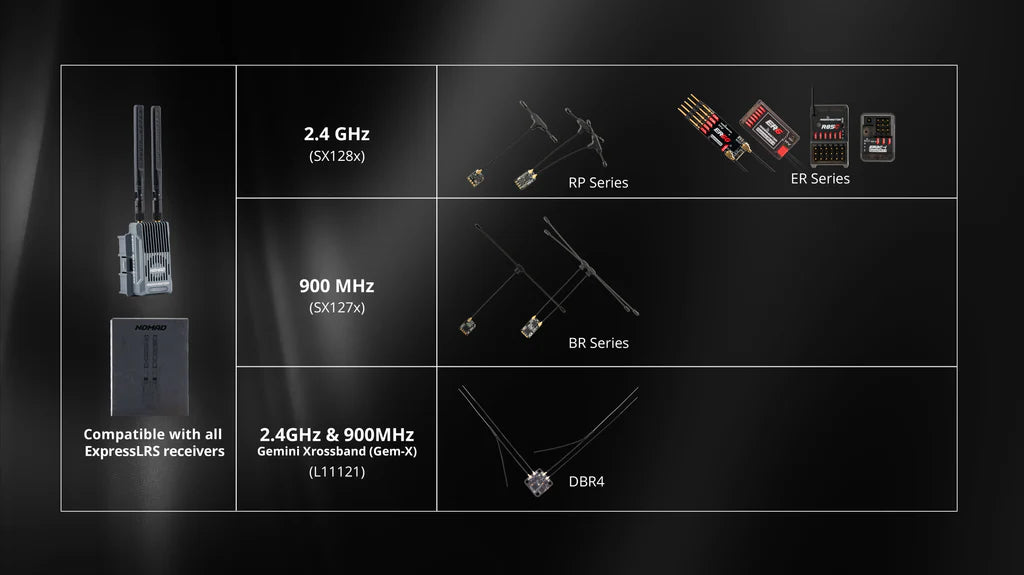

  • Compatible with all existing 2.4ghz and 900mhz ExpressLRS receivers. (See mode compatibility below)
  • Compatible with 2.4ghz+900mhz Dual band (Gem-X) ExpressLRS receivers
  • Twin Dual-band 1W transceivers
  • Experience unmatched reliability with dual-band ELRS Gemini Xrossband
  • ExpressLRS Gemini 2.4GHz & ExpressLRS Gemini 900MHz

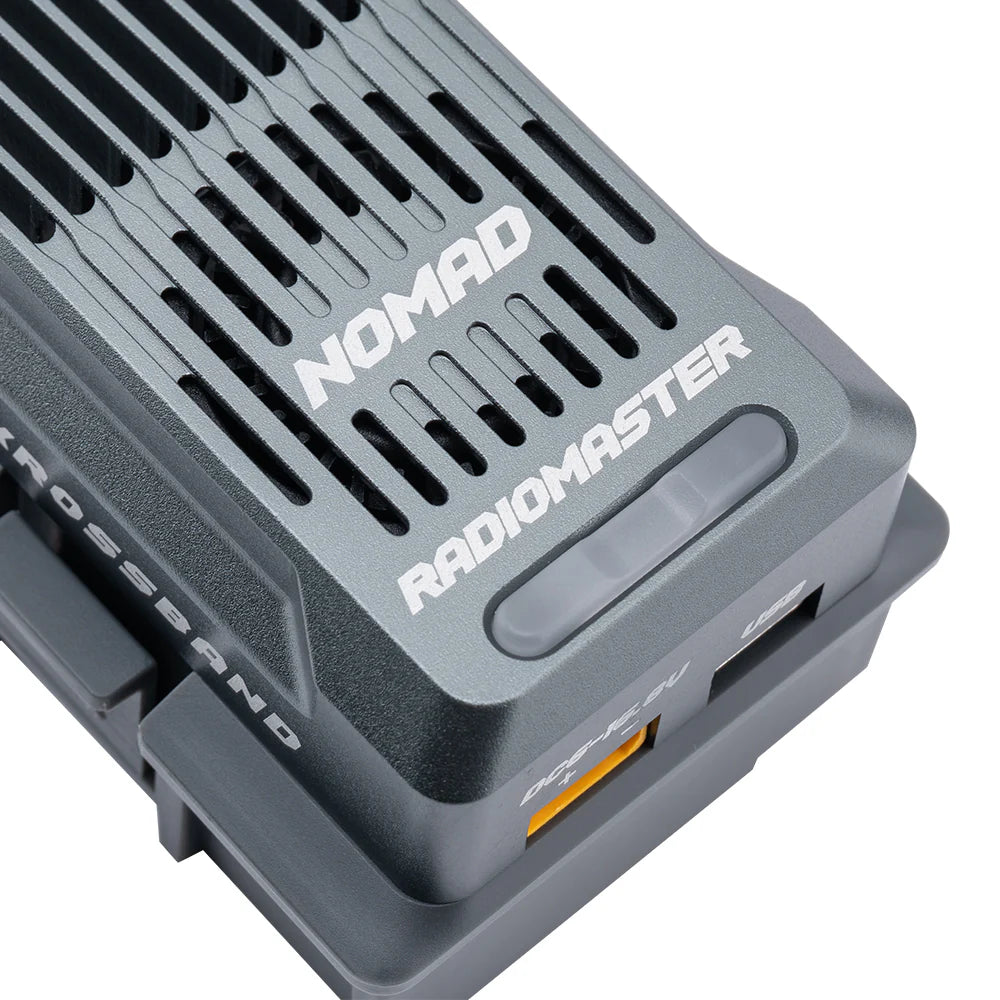

  • Powerful Cooling System with dual 1-watt transceivers, the Nomad boasts serious power, complemented by an advanced cooling system to keep your module cool even on the hottest days



COMPATIBILITY:

Protocols:

  • ExpressLRS 2.4GHz
  • ExpressLRS 900MHz

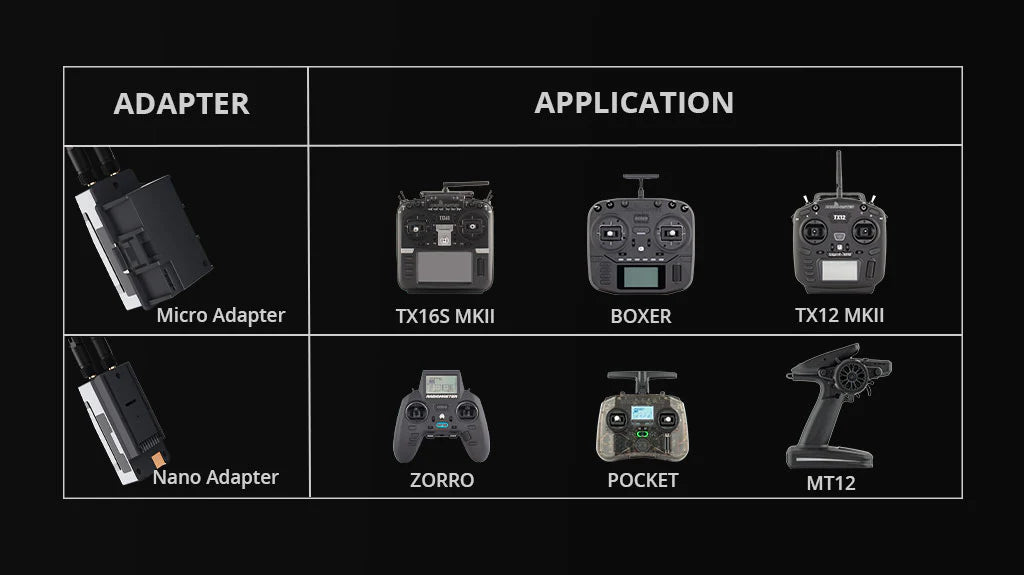

Trays:

  • Micro JR Bay
  • Nano Bay



SPECIFICATIONS:

  • Item: Nomad Dual Band Module with Micro Adapter
  • Regulatory Domain: ISM_2.4, FCC_915
  • MCU: ESP32(main), ESP32c3(aux, as ESP backpack)
  • RF chip: Semtech LR1121 x 2
  • RF: Dual 1000mW | Dual band Gemini ELRS
  • Frequency Range: 2400 MHz - 2479 MHz / 903MHz - 927MHz
  • Maximum packet rate: 500Hz (1000Hz coming soon in ExpressLRS V3.5)
  • Minimum receiver refresh rate: 50Hz
  • RF Output Power: 1000mW x  2
  • Module bay adapters: Micro standard 5pin socket & Nano standard 8pin socket
  • Wifi Support: Yes
  • Bluetooth support: Yes
  • Built-in RGB light strip

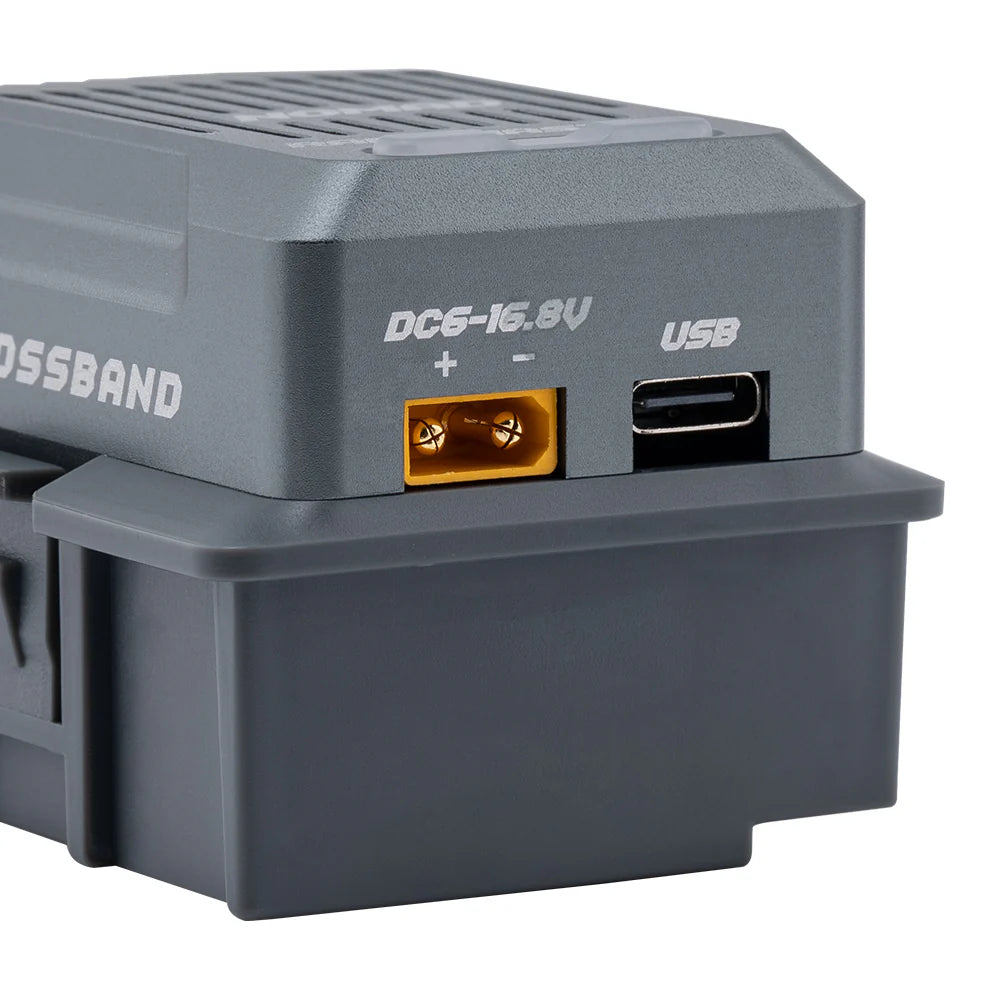

  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight: 87.20g (with antenna) /  71.10g (without antenna)
  • Dimension: 80*45*40mm (without antenna)



HELPFUL LINKS:



INCLUDES:

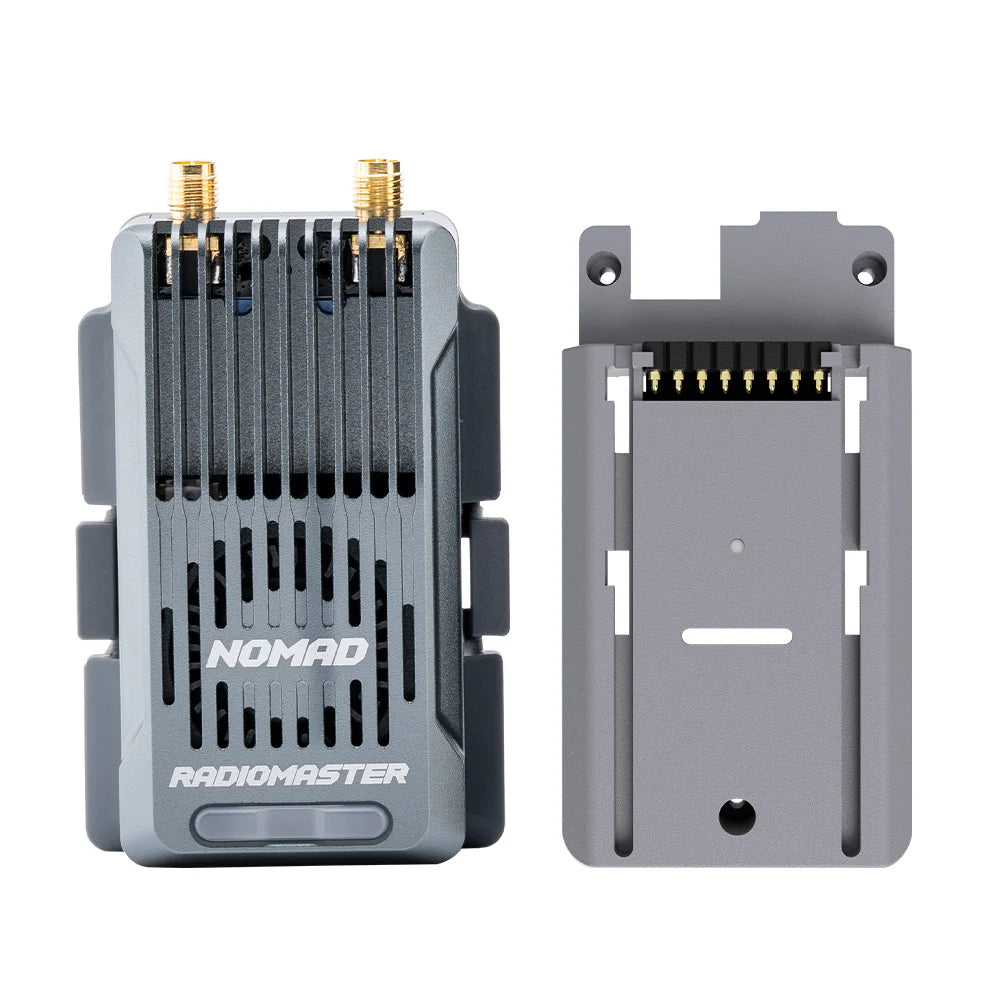

(1) Nomad Dual Band Module with Micro Adapter
(2) Dual Band 2.4GHz / 900 MHz Antennas
(1) Nano Adapter
(1) Manual card
