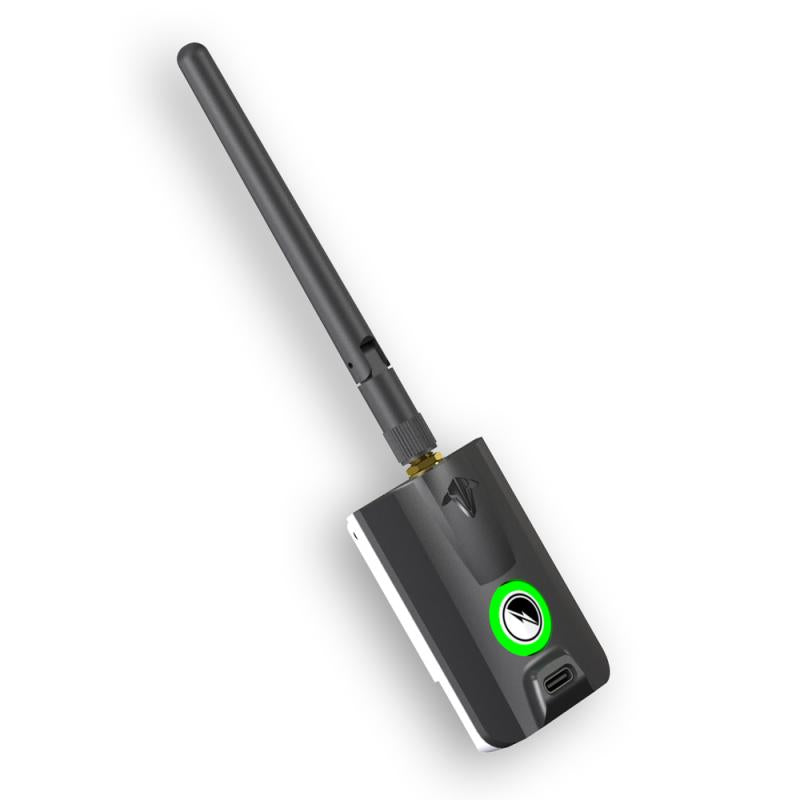

TBS Tracer Nano TX Module

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End-to-end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, TBS took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, and better range for days.



FEATURES:

• 250Hz: Fastest available radio and telemetry link
• Brand new 2.4GHz technology not found in any other radio link
• 3ms end to end latency
• Crossfire engine for ultimate compatibility and functionality
• "JR" and "LITE" form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars, and boats

COMPATIBILITY:

Radio Transmitters:

• TBS Tango 2
• Taranis X-Lite
• X9 Lite
• Radio Transmitters with "Lite" module Bay
• Futaba and Spektrum remotes that do not have a JR-module bay



Radio Receivers:

• TBS Tracer Varieties



Firmware:

• OpenTX V2.1+



SPECIFICATIONS:

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 5V - 9V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) - 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)



HELPFUL LINKS:

• TBS Tracer Nano TX Manual



INCLUDES:

(1) TBS Tracer Nano TX Module
(1) Antenna
