HobbyWing QUICRUN Fusion SE / 1800KV 2-in-1 Sensored Brushless Motor/ESC System

$99.99

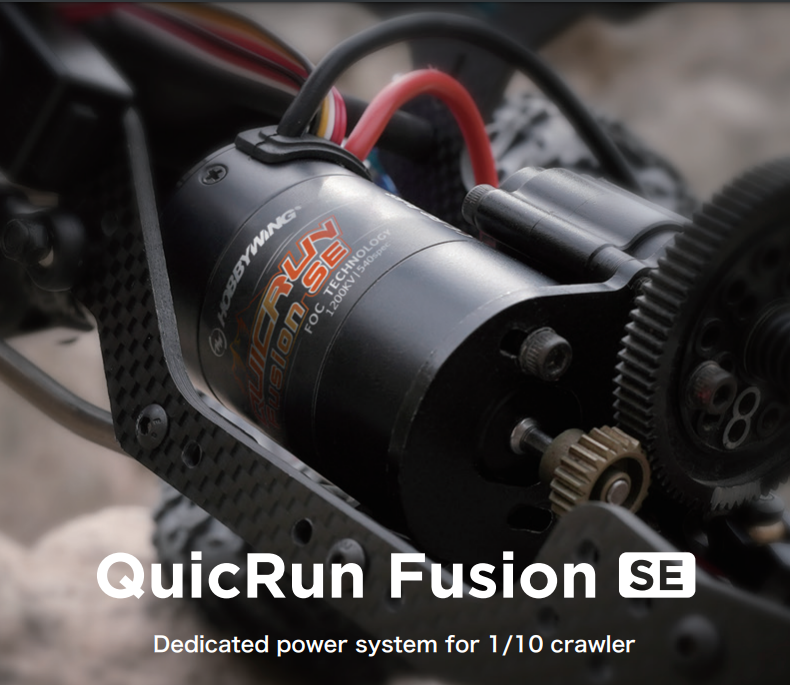

HobbyWing QUICRUN Fusion SE / 1800KV 2-in-1 Sensored Brushless Motor/ESC System

The QUICRUN Fusion SE is a remarkable 2-in-1 system that combines an electronic speed controller (ESC) with a brushless motor. Designed specifically for 1/10th scale rock crawlers, this integrated system offers several advantages. It features a brushless FOC system that provides you with strong torque and smooth running even at extremely low speeds.


FEATURES:

  • The ESC and motor are integrated into a single unit, reducing overall volume and weight. This streamlined design simplifies the layout and wiring within the car frame.
  • Driving Modes: FOC (Field-Oriented Control): Provides strong low-speed torque and smooth running even at extremely low speeds. It outperforms common sensored brushless systems and even brushed power systems. Sine Wave Driving Mode: Ensures high efficiency, minimal heat generation, and extended endurance time. The motor runs quietly and smoothly.
  • The system can handle various weather conditions, including silt, ice, snow, and water. Multiple Protection Functions: Includes safeguards against low voltage, overheating, throttle loss, and lock-up.
  • Use the LED program box to adjust ESC parameters. The system has an independent parameter setting interface integrated into the electronic switch for easy adjustments.


    SPECIFICATIONS:

    • Part# 30404317
    • Application: 1/10th Rock Crawler, Brushless Sensored system
    • Waterproof: Yes
    • Cont./Peak Current: 40A
    • BEC Output: Adjustable 6V/7.4V, continuous current 4A (Switch mode)
    • Lipo Rating: 2-3S Lipo / 6-9 Cell NiMH
    • Motor KV: 1800KV
    • Diameter / Length of Motor: 36mm / 58.1mm
    • Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
    • Motor Poles: 4
    • Input Wires: Red-14AWG-200mm1 / Black-14AWG-200mm1
    • Input Connectors: XT60 (Note: All the wire lengths mentioned are the original lengths, not what you see from the outside.)
    • ESC Programming via: LED Program Box
    • Program Port: Independent programming interface (switch position)
    • Size / Weight: 36mm X 58.1mm / 201g (including wires & connectors)


      HELPFUL LINKS:


      INCLUDES:

      (1) HobbyWing QuicRun Fusion SE / 1800KV 2-in-1 Sensored Brushless Motor/ESC System
