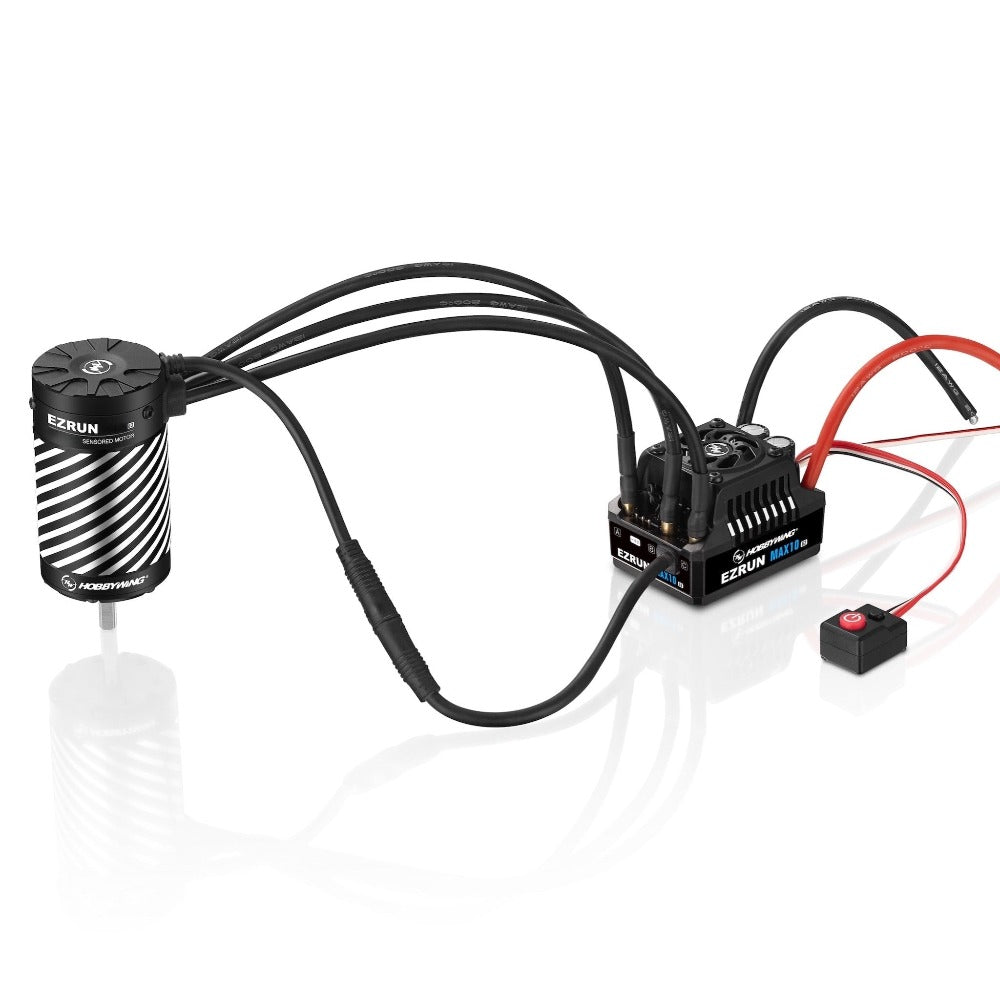

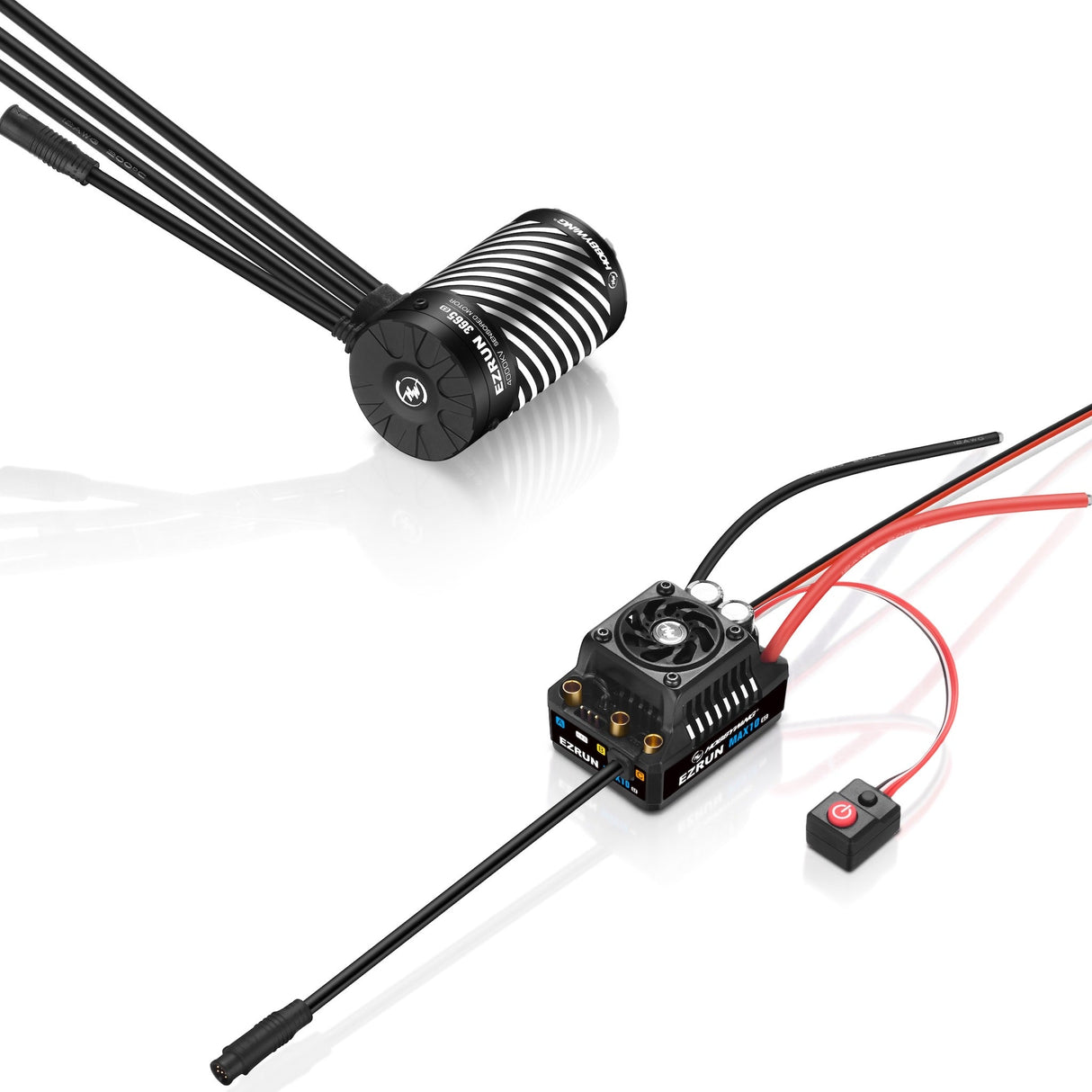

HobbyWing EZRUN MAX10 G3 140A ESC & 3665SD 3200KV Sensored Motor Combo (2-3S)

Introducing the EZRUN MAX10 motor combo. It features an improved waterproof sensor cable interface and an upgraded sensor mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.

FEATURES:

• Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
• The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduce noise and save power. The fan will only work when the temperature rises to a certain level.
• Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating-protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
• Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
• After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real-time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
• The IP-67 waterproof system guarantees excellent waterproofing and dust proofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow, and water without damaging the power unit.

SPECIFICATIONS:

Combo:

• Part# 38020344

ESC:

• Part# 30102603
• Type: EZRUN MAX10 140A
• Scale: 1/10 Short course car, Truck, Monster truck
• Cont./Peak Current: 140A / 880A
• Motor Mode: Sensored and Sensorless Brushless Mode
• Input: 2-4S LiPo
• Motor Limit:
• 3S LiPo: KV ≤ 4000 (3665)
• 4S Lipo: KV≤ 2600 (4268)
• BEC Output: 6V / 7.4V adjustable, continuous current 5A (Switch-mode))
• Programming Port: Independent
• Power Connection: XT60
• ESC Programming: Same
• Switch Mode: Same
• Capacitor Protection: Yes
• Waterproof: Yes
• Size: 53 x 39.5 x 37.2mm
• Weight: 120g (with wires)

Motor:

• Part# 30402607
• Type: EZRUN 3665 G3
• Size: 3665 SD G3
• KV: 3200KV
• Input: 2.-3S
• R. (Ω): 0.00555Ω
• No-Load Current: 7.1A
• Poles: 4-Pole
• Weight: 304.4g
• Bearing Size: Front: D16 x D5 x T5 / Rear: D11 x D5 x T5
• Motor Diameter: φ=37mm
• Motor Length: 65.8mm
• Shaft Diameter: φ=5mm
• Shaft Length: 16.5mm

HELPFUL LINKS:

• EZRUN MAX10 ESC Manual
• EZRUN 3665 G3 Motor Manual

INCLUDES:

(1) EZRUN MAX10 G2 (140A) ESC w/ XT60 power plug
(1) EZRUN 3665 G3 Sensored Brushless Motor
(1) Double-Sided Tape
