Hitec D956WP Digital High Torque Servo (25T Spline / Metal Gears)
Hitec D956WP Digital High Torque Servo (25T Spline / Metal Gears) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hitec D956WP Digital High Torque Servo (25T Spline / Metal Gears)
The D956WP has arrived! Based on the D954SW servo, this IP-67-rated version is the true waterproof, dust-resistant upgrade for 1/10th-scale Rock Crawlers and Off-Road Trucks. As with Hitec's entire “D” line, this technologically-advanced servo is powered by a 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possesses Smart Sense engineering with a rapid, high-resolution response. The unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. With incredibly durable steel gears, dual ball bearings, and hardened steel output shaft, the high-end performing D956WP produces the mighty torque and reliability required to take bashers to the next level
FEATURES:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Water Resistant and Waterproof Proof Case
SPECIFICATIONS:
- Part #: HRC36956

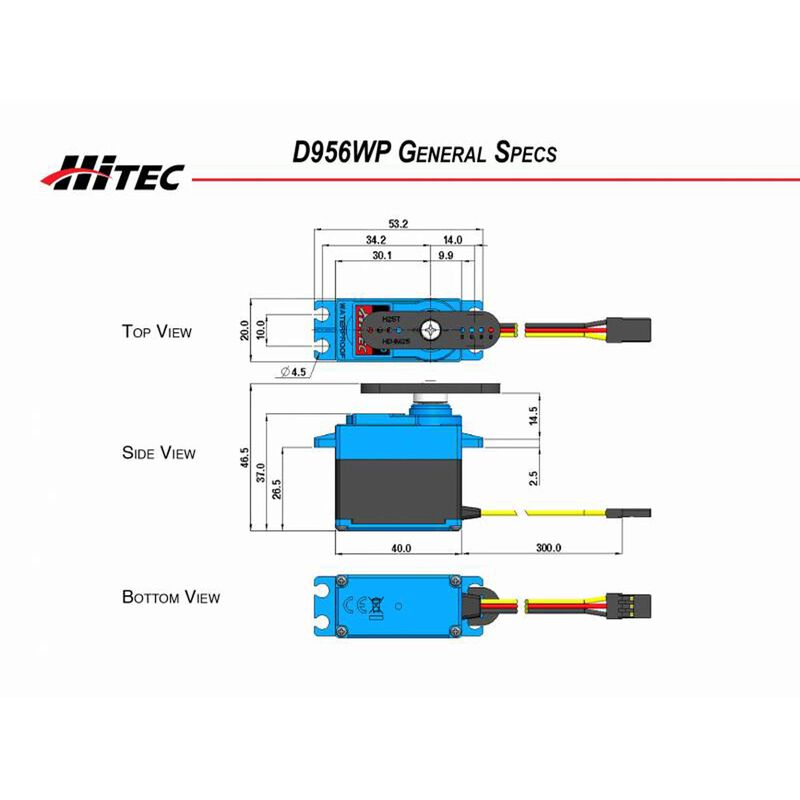

- Size HxLxW: 1.46" (37mm) x 1.57" (40mm) x 0.78" (20mm)
- Torque: @4.8V 251oz/in / @7.4V 405oz/in
- Spline Count: 25 - Tooth
- Servo Speed: 0.19 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 7.4V
- Bearing: Dual Ball Bearing
- Bushing Or Bearing: Bearing
- Gear Type: Metal
- Wire Gauge: 20 AWG
- Programmable: Yes
- Servo Size Category: Standard
- Application: High-Performance Aircraft, Cars, Boats
- Product Weight: 2.40 oz (68.0g)
- Spline Count: 25 - Tooth
- Water-Resistant: Yes
- Deadband: 1µs
- Input Voltage: 4.8V ~ 7.4V
- Servo Type: Digital
- Connector Type: Universal
- Current Draw Stall: 5,200mA
- Motor Type: Brushed
- Servo Operating Voltage: 4.8 - 7.4V (HV)
- Current Draw Idle: 30mA
HELPFUL LINKS:
INCLUDES:
(1) Hitec D956WP Digital High Torque Servo (25T Spline / Metal Gears)
