HobbyWing EZRUN MAX8 G2S 160A Sensored Brushless ESC (Bluetooth / 3-6S)

$139.99 $149.99

HobbyWing EZRUN MAX8 G2S 160A Sensored Brushless ESC (Bluetooth / 3-6S)

The new Hobbywing EZRUN MAX8 G2 is a waterproof brushless ESC tailored for 1/8 Truck or Truggy models. With compatibility ranging from 4S to 6S batteries, it offers versatile power options for enthusiasts. It includes a powerful switch mode BEC for high-voltage servos, advanced electronic switches for durability, and a 32-degree turbo timing setting to boost RPM by 25%.



FEATURES:

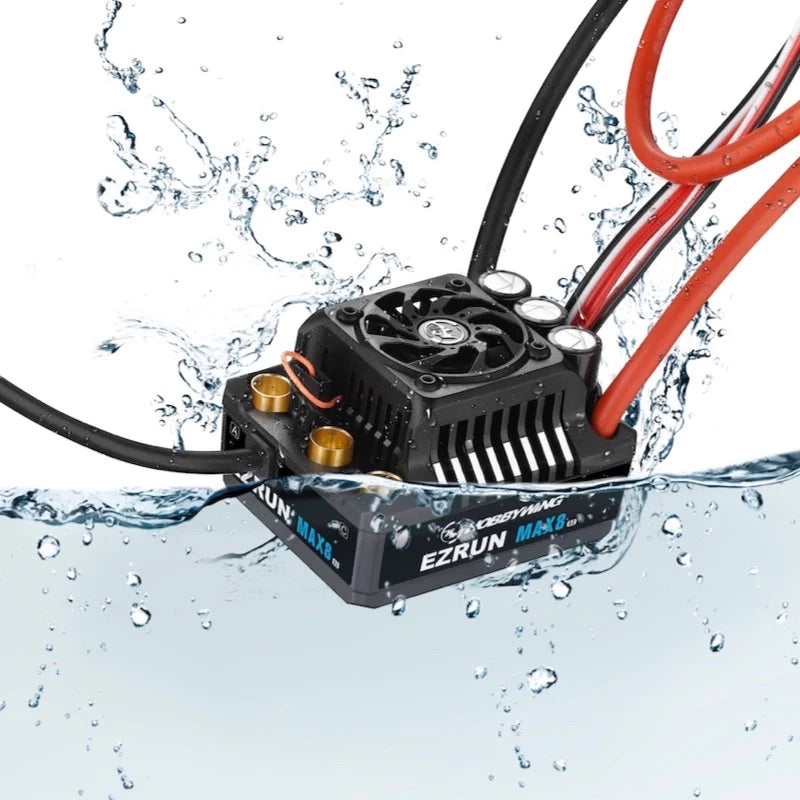

  • The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates.
  • Built-in ultra-powerful switch mode BEC with a continuous current of 6A, an instant 15A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
  • Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
  • Support the 32-degree turbo timing setting. When used with the matching motor (such as EZRUN 4278SD), the maximum rpm can be increased by about 25%.
  • Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
  • Real-time data logging to view various running data on the HW LINK app using the OTA Bluetooth module.
  • Supports firmware updates using the built-in Bluetooth and HW Link V2 App.



SPECIFICATIONS:

  • Part# 30103205
  • Current cont./peak: 160A/1050A
  • Motor Type: Brushless, Sensored and Sensorless
  • Recommended Motor Size: 42xx
  • Motor Limits: 4S Lipo: KV=3000; 6S Lipo: KV=2400
  • Input Volatge: 3-6S LiPo
  • BEC Output: 6V / 7.4V / 8.4V with 10A (adjustable)
  • Fan: Yes (powered with the internal BEC - Intelligent fan start-stop function)
  • Programming Port: Shared with fan interfaces
  • ESC Programming: LCD G2 Program Box
  • LED Program Box
  • OTA Programming Module
  • Dimensions: 60x48x40.5mm
  • Connector Type: XT90 Female
  • Weight: 192g
  • Applications: 1/8 On-Road, Short Course Truck and Monster Truck



HELPFUL LINKS:



INCLUDES:

(1) HobbyWing EZRUN MAX8 G2 160A Sensored Brushless ESC (3-6S)
