ARRMA 1/10 Vorteks 3S BLX 4WD Stadium Truck (Brushless / ARR)

With the installed, 2S or 3S compatible Spektrum Firma 3200KV brushless motor, the VORTEKS^™ is fast right out of the box. Using a 3S LiPo battery and an optional pinion gear, it easily becomes the first ARRMA^® 4X4 3S BLX model capable of 60 mph and more! The proven tough ARRMA^® 4X4 platform lets you bash at high speeds in almost any environment — off-road, on dirt and grass, on parking lots and over paved and asphalt surfaces. Its durability comes from a strong composite chassis featuring extended height dirt defenders, oil-filled shocks with silicone O-rings, metal geared differentials and more. Rugged bumpers and high-traction dBoots^® Katar^™ tires mounted on tough, gun-metal colored wheels add to its unstoppable performance.

FEATURES:

• Stadium truck body with tough, injection molded wing and protective roof skids
• High-traction, vented dBoots^® Katar^™ multi-terrain tires mounted to tough, gun-metal color wheels
• Spektrum^™ 2.4GHz DX3 transmitter and SR6200A receiver Smart radio system with AVC^® (Active Vehicle Control^®)
• Strong Composite Chassis
• Convenient Modular Design
• Double wishbone suspension front and rear
• Durable 37T 1.35 module differential gears, metal internal diff gears and silicone O-rings

REQUIRED:

(1) 2S or 3S LiPo Battery with IC5/EC5 Connector (See battery tray dimensions in specs)
(1) Compatible LiPo Battery Charger
(4) AA Batteries for Transmitter

SPECIFICATIONS:

• Model#: ARA4305V3T3
• Battery Tray Dimensions: 156 x 51 x 48mm / 6.14 x 2.01 x 1.89 inches
• Ball Bearings: Full set, rubber shielded
• Body: Painted, decaled and trimmed
• Brakes: Integral with ESC
• Chassis: Molded Composite
• Differential: 2 Gear Diffs
• Drivetrain: 4WD
• Final Drive Ratio: 9.03
• Power Type: Electric
• Gear Pitch: 0.8m
• Internal Gear Ratio: 2.85
• Motor Type: Brushless - Sensorless
• Pinion: 18T
• Product Height: 6.42" (163 mm)
• Product Length: 18.5" (470 mm)
• Product Weight: 6.49 lbs (2.95kg)
• Product Width: 13.31" (338 mm)
• Shock Type: Oil-Filled, Coil-Over Springs
• Spur Gear: 57T
• Suspension: Independent
• Vehicle Type: Stadium Truck
• Wheelbase: 11.3" (287 mm)
• Color: Red or Green
• Battery Connector: IC5/EC5

HELPFUL LINKS:

• ARRMA Vorteks User Manual
• ARRMA Vorteks Exploded View

INCLUDES:

(1) ARRMA 1/10 Vorteks 3S BLX 4WD Stadium Truck (Red or Green)
(1) Spektrum 2.4GHz DX3 Smart DSMR 3-Channel Transmitter
(1) Product Manual

Installed:
(1) Spektrum™ Firma™ 100A Smart Waterproof ESC
(1) Spektrum™ Firma™ 3660 3200Kv Brushless Motor
(1) Spektrum™ SR6200A AVC® Receiver
(1) Spektrum™ SPMS651 7kg Waterproof Metal-Geared Digital Servo
(1) 23T Spline servo saver

MORE INFO:

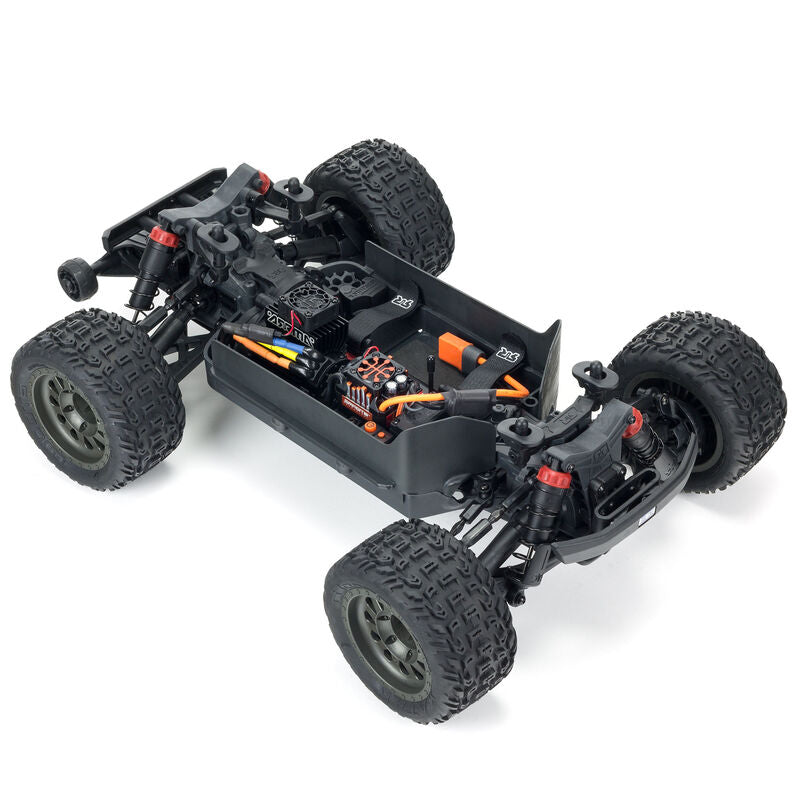

STRONG COMPOSITE CHASSIS

Features that contribute to the 4X4 3S BLX platform's unstoppable performance include a stronger composite chassis and retained hinge pin plates; steering with more clearance for stones; castellated slipper pads and sliding gear mesh; and rubber-shielded bearings throughout.Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. Front and rear bumpers offer defense against impacts.



CONVENIENT MODULAR DESIGN

The VORTEKS^™ 4X4 3S BLX Stadium Truck RTR incorporates the signature ARRMA^® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics and differential components make routine maintenance fast and simple. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for servicing by taking out three screws that attach the gear cover.



ELECTRONICS MODULE

A two-piece molding screwed to the VORTEKS^™ Stadium Truck's chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray.

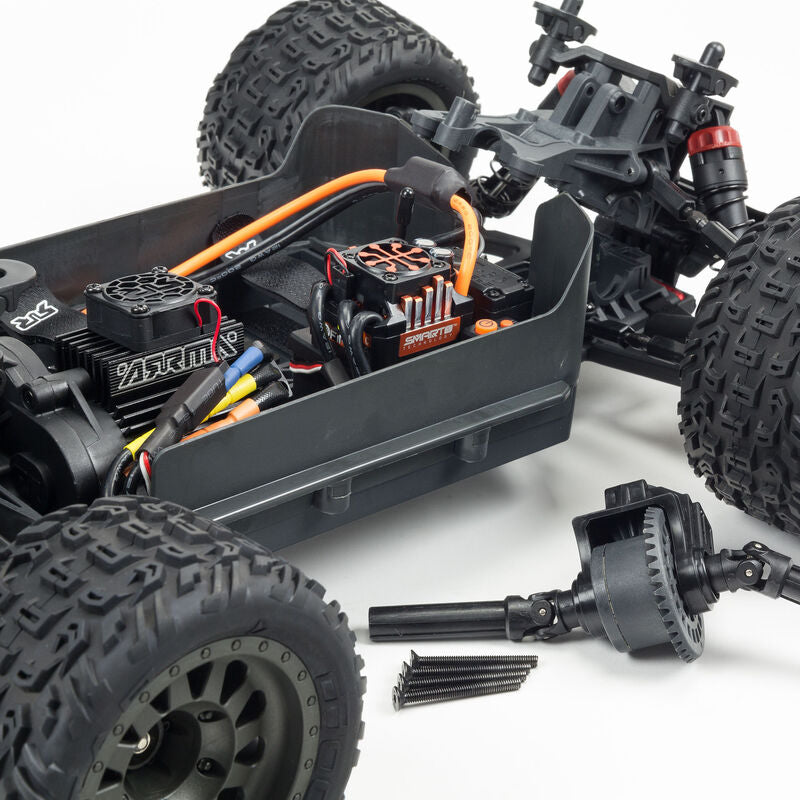

DIFFERENTIAL MODULE

The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access.



WHEELS AND TIRES

Multi-surface, vented dBoots^® Katar^™ tread tires are mounted to tough, gun-metal color nylon wheels. The tires provide aggressive grip and easy handling characteristics in all conditions and are made of high-quality rubber for long-lasting durability.

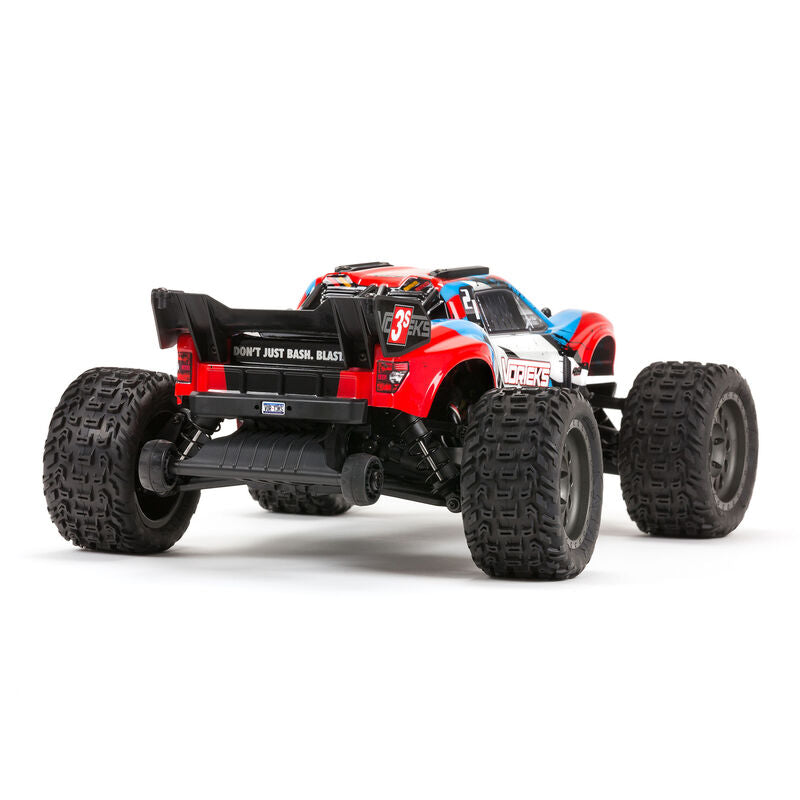

STADIUM TRUCK BODY

The sleek stadium truck body features a tough, injection-molded rear wing and protective roof skids. It's available finished in your choice of three exciting color combinations. Front and rear bumpers protect against impacts and a wheelie bar provides stunt potential.



SPEKTRUM^™ RADIO AND ELECTRONICS

A first for any ARRMA^® 1/10 scale 4X4 RTR, the VORTEKS^™ Stadium Truck includes Spektrum^™ radio equipment with telemetry-capable Smart Technology plus AVC^® on-demand traction control for extra stability when you need it.



OIL-FILLED SHOCKS

The self-bleeding, oil-filled shocks with silicone O-rings use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a molded-in spring perch for extra toughness.
