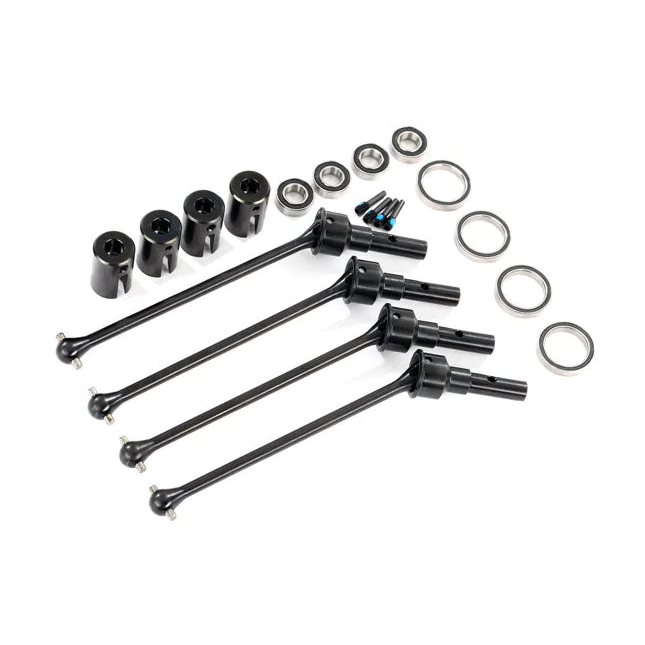

Traxxas Steel CV Driveshaft Set for Maxx (#8996X / Front-Rear / 4pcs)

Extended WideMaxx^® steel Constant Velocity Shafts offer the ultimate in torque handling and efficient power transfer for high-power brushless applications. On the axle side, bearings secure the drive pins in place to prevent back-out. Large-bore drive pins are press-fit on the differential side and slot into the heavy-duty steel drive cups. The included bearings are rubber-sealed to keep out dirt while a durable black-oxide coating helps prevent rust on the drive gear. Traxxas’ unique, splined telescoping design delivers full-range articulation, so there is never a need to limit suspension travel.



COMPATIBILITY:

• Wide-Maxx 4WD
• Maxx 4WD w/ Wide-Maxx Arms



REQUIRED:

(1) Set of Traxxas 8654-series 17mm splined wheel hubs
(1) Set of Traxxas 7758-series 17mm wheel nuts



SPECIFICATIONS:

• Part# 8996X
• Material: Steel
• Position: Front & Rear
• Big Bearing: 17x23x4
• Small Bearing: 8x16x5



INCLUDES:

(4) Traxxas Steel CV Driveshafts
(8) Wheel Hub Bearings



NOTES:

• Must be used with WideMaxx suspension arms.
• Steel CV axles must be used with 8654-series 17 mm splined wheel hubs and 7758-series 17mm wheel nuts.
