Aikon F7 AIO Flight Controller with ESC (25x25 / 60A / 3-6S)
Aikon F7 AIO Flight Controller with ESC (25x25 / 60A / 3-6S) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Aikon F7 AIO Flight Controller with ESC (25x25 / 60A / 3-6S)

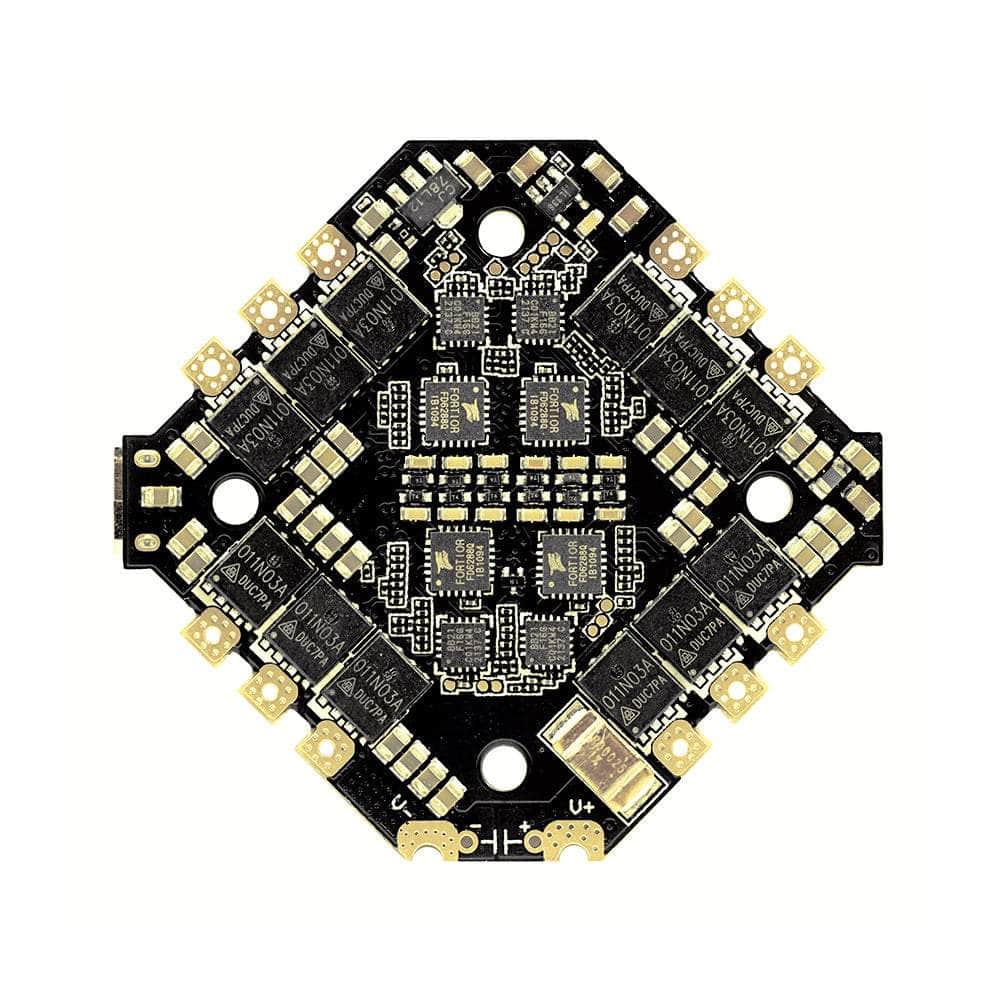

Introducing the Aikon F7 AIO Board. This flight controller and ESC combo features a 216mhz F7 processor that is specifically designed for cinewhoops and other high-current applications. All the greatest features into one seamless flight experience!
FEATURES:
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- Software-controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- 10v 1.5A voltage regulator for DJI HD system
- 5 Software invertible hardware UARTS
- Large 5x6mm high current MOSFETs
- Onboard OSD and Blackbox
- 216mhz F7 Processor
SPECIFICATIONS:
- Voltage Input: 3-6S LiPo
- Current Sensor: Yes
- Telemetry: No
- Con. Current: 60A (Peak 70A)
- FC Firmware Target: Betaflight AIKONF7
- ESC Firmware: BLHeli_S (Supports BlueJay)
- IMU: BMI270
- Mounting Holes: 25x25mm
- Size: 43 x 43 x 5.5mm
- Weight: 13.5g
INCLUDES:
(1) Aikon F7 AIO Flight Controller with ESC (25x25 / 60A / 3-6S)
(1) Power Leads w/ XT60
(5) M2 Rubber Grommets (Black)
(5) Rivet Nuts
(1) 35V / 40uF Capacitor
