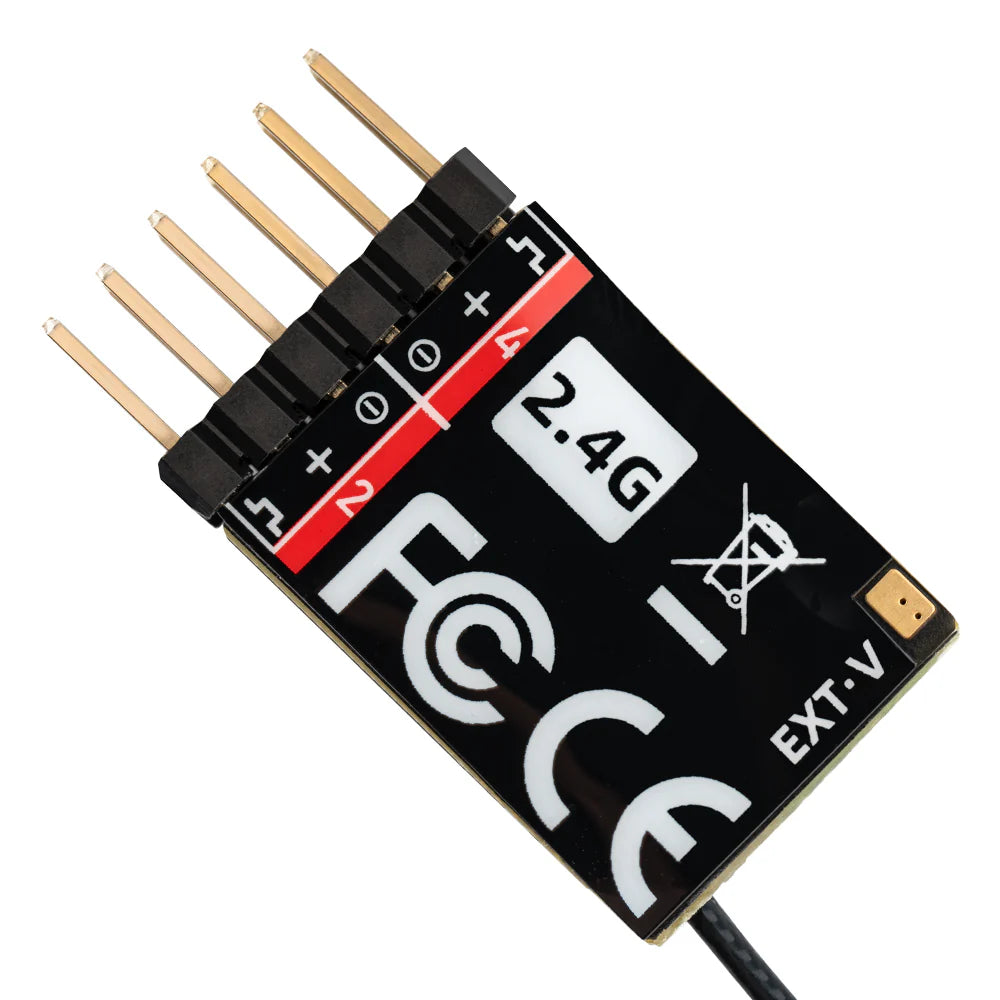

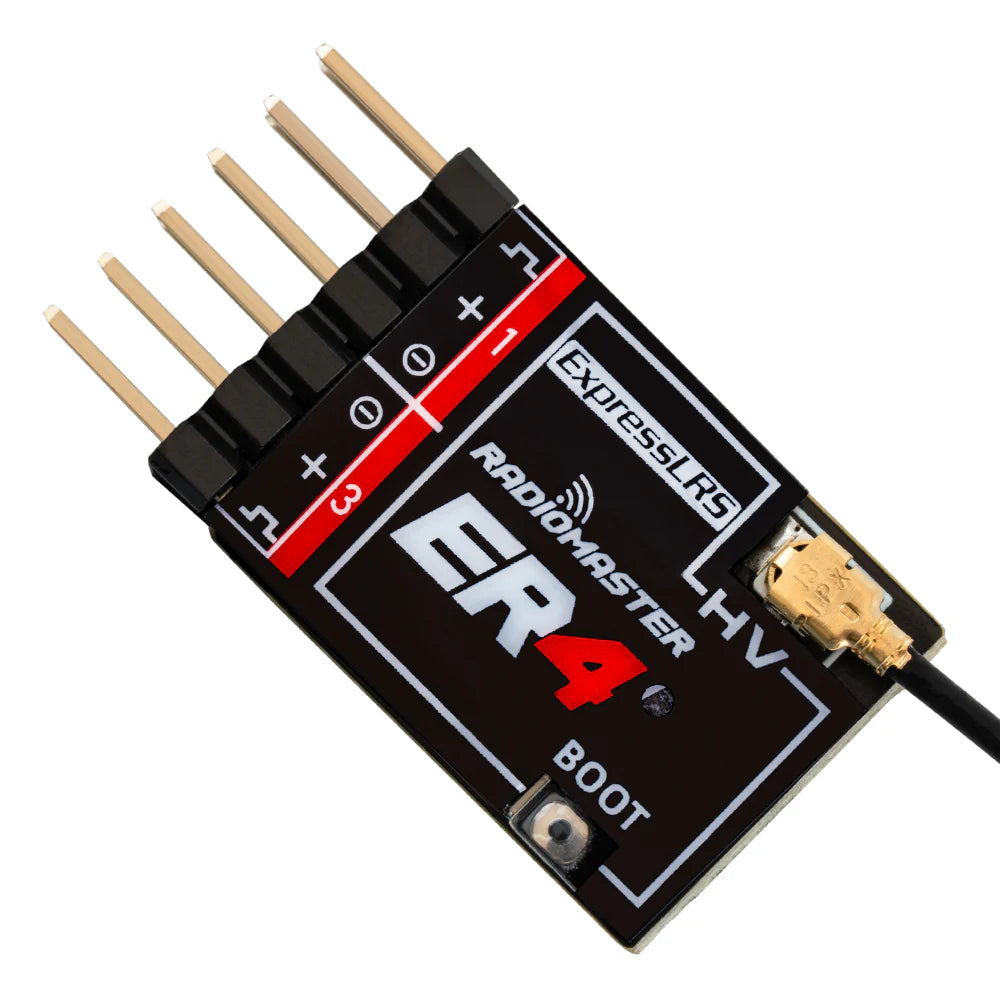

RadioMaster ER4 ExpressLRS 2.4GHz / 4CH PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you brand new experience with your hobby.

The ER4 PWM receiver can drive 4 servos simultaneously. Designed with a very small volume, it is suitable for small aircraft models, ship models, car models, and other models that require a small or lightweight receiver while still providing full range.

FEATURES:

• Based on the Revolutionary ExpressLRS System.

• High performance, high reliability, flexible configuration, fast response speed and ultra-long range.

• Support 4 PWM Channel.

• Optimized ground-up PCB design.

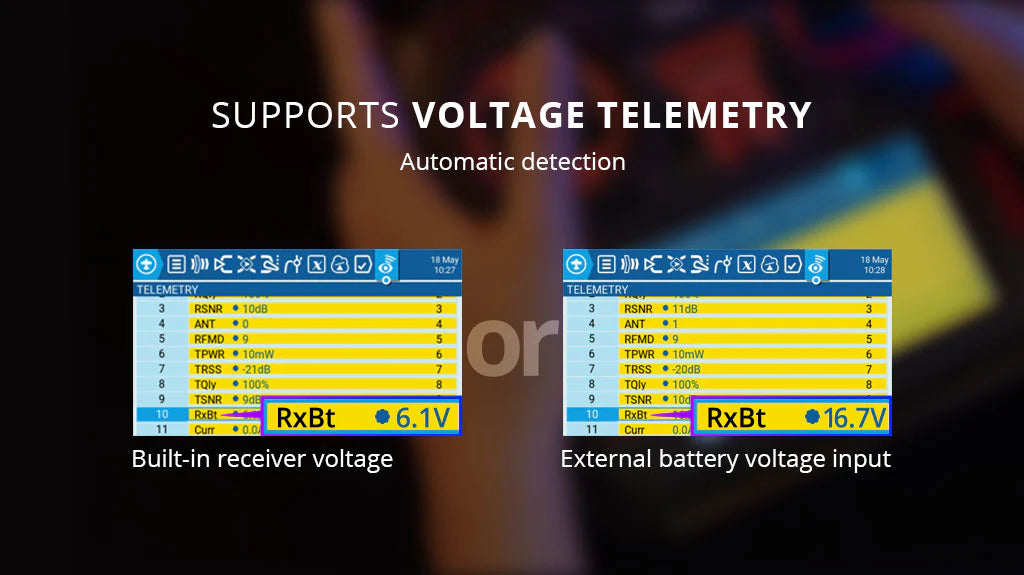

• Automatically voltage telemetry of external battery voltage or built-in receiver voltage.

• Supports Wi-Fi updates and WEBUI configuration.

• High-quality 2.54 mm connector.

• Standard 15 cm High Sensitivity Antenna.

• For small aircraft, boats, cars, and more.

• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built-in 2.4GHz ExpressLRS.

COMPATIBILITY:

• Radio Transmitter/Controller with ELRS Protocol

SPECIFICATIONS:

• Part#: HP0157.RX-ER
• Item: ER4 2.4GHz ELRS PWM Receiver

• Power supply: DC 4.5 - 8.4V

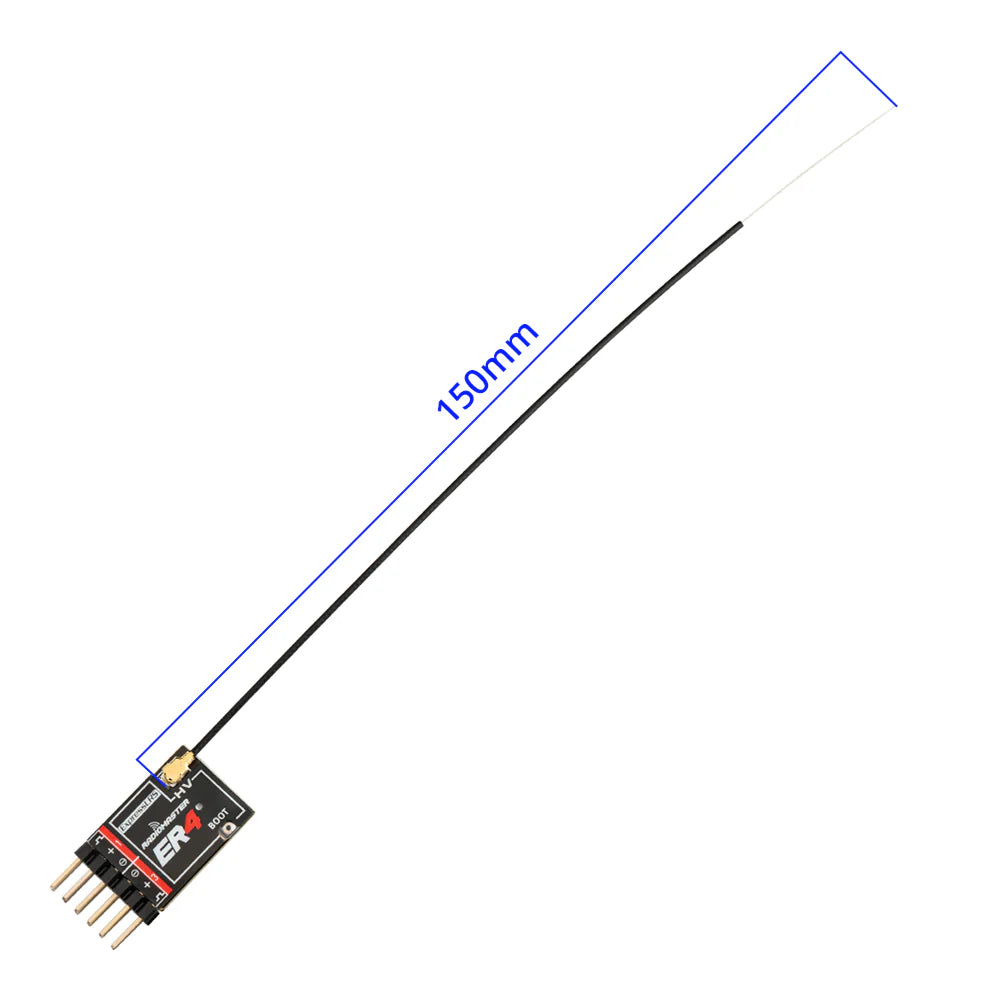

• Antenna type: 15cm high sensitivity antenna

• Wireless protocol: ExpressLRS 3.3.0 pre-installed

• Output channel: 4CH PWM

• Serial Output: CRSF / Sbus

• Telemetry power: 10mw

• Battery voltage detection range: DC 4.0- 35V

• Weight: 3.0 grams

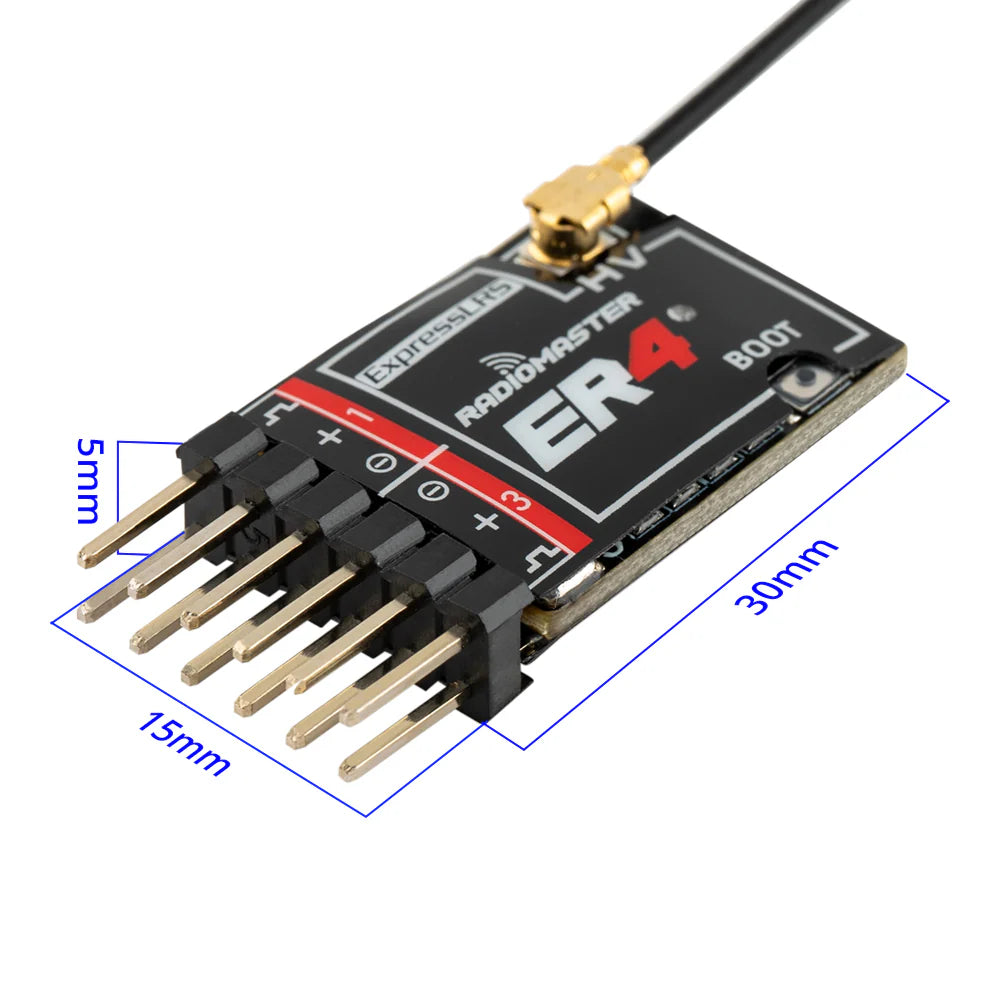

• Dimensions: 30 x 15 x 5mm

• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2.4GHz PWM RX

HELPFUL LINKS:

• User Manual

INCLUDES:

(1) ER4 2.4GHz ELRS PWM Receiver
(2) Heat-shrink tubes
(1) Voltage telemetry wire (Type-A)
(1) User card
