TBS Tango 2 Module Bay

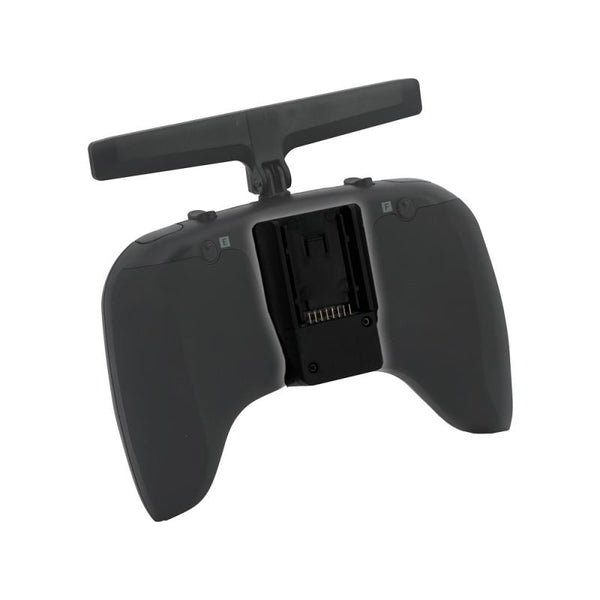

This "LITE" style module bay fits in the back of your Tango 2 transmitter and plugs into the receptacle board, providing your Tango 2 transmitter with the capability of switching modules.



COMPATIBILITY:

• TBS Tango 2 (with Mainboard "V006H" and up)
• Most "LITE" Style RX Modules

* Not compatible with the XJT mini-module as they use a pin that TBS did not anticipate for use in their module bay. It appears that the XJT mini-module is the only module on the market that uses this pin. This is why there is an incompatibility between the XJT mini-module and the Tango 2 (V2 and up) boards.



INSTALLATION INSTRUCTIONS:

• Install the FPC cable to the PCB by first lifting the lock and then sliding the cable in (with the blue side facing up), and then lock it back down.
• Feed the cable through the bottom, and place the PCB in the module bay.
• Turn the module bay around to make sure everything fits accordingly.
• Close the case with the 2 screws provided.
• Use a Dremel, knife, or solder tip to cut a small hole according to the outline.
• Slide the flex PCB through the drilled case.
• Clean the back surface and tape the Tango 2 module bay down.
• Install the FPC cable into the receptacle.
• Close the Tango2 case, and you're done!



INCLUDES:

(1) Module Bay
(1) Ribbon Cable
(1) PCB
(2) Screws

*Tango2 Radio Transmitter sold separately.
