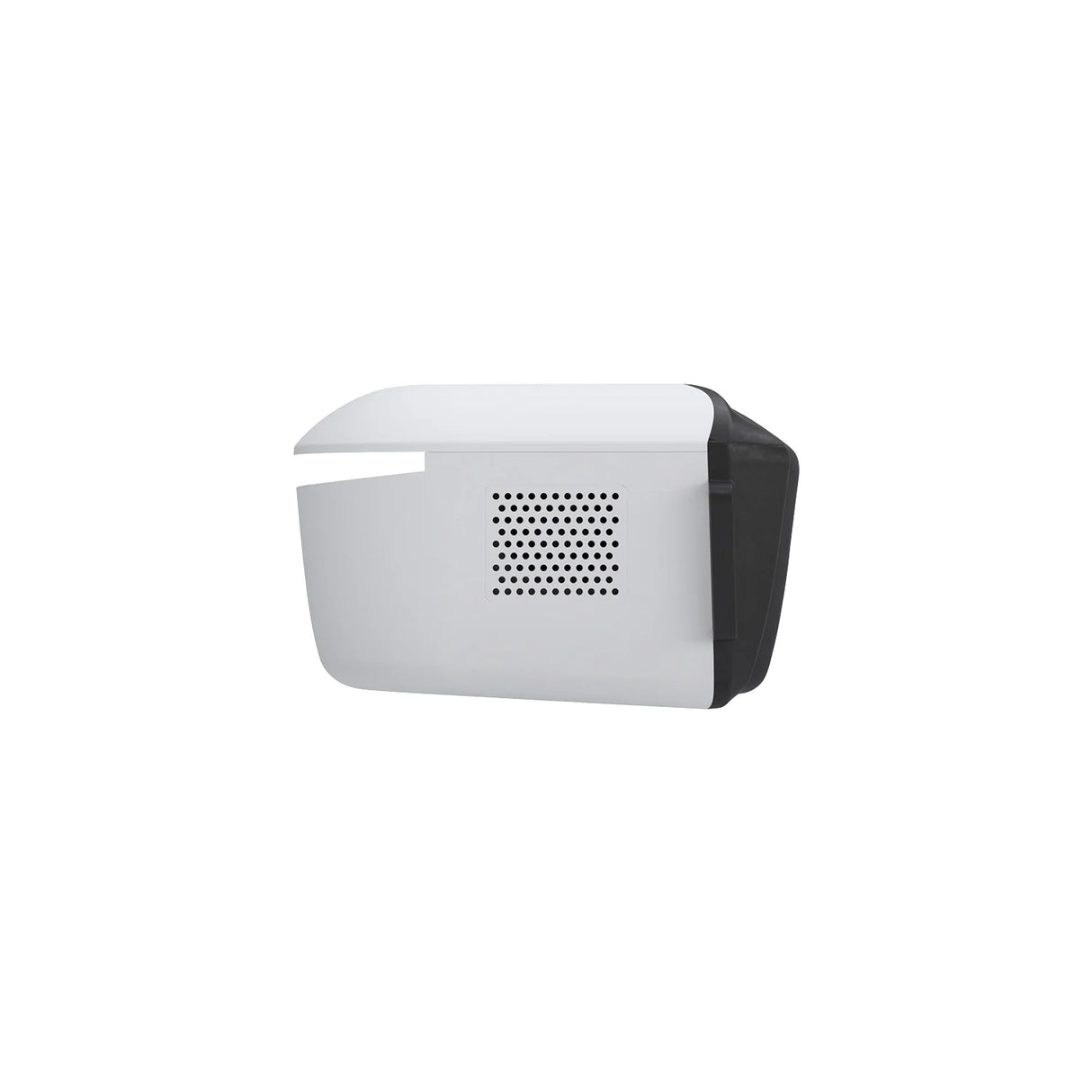

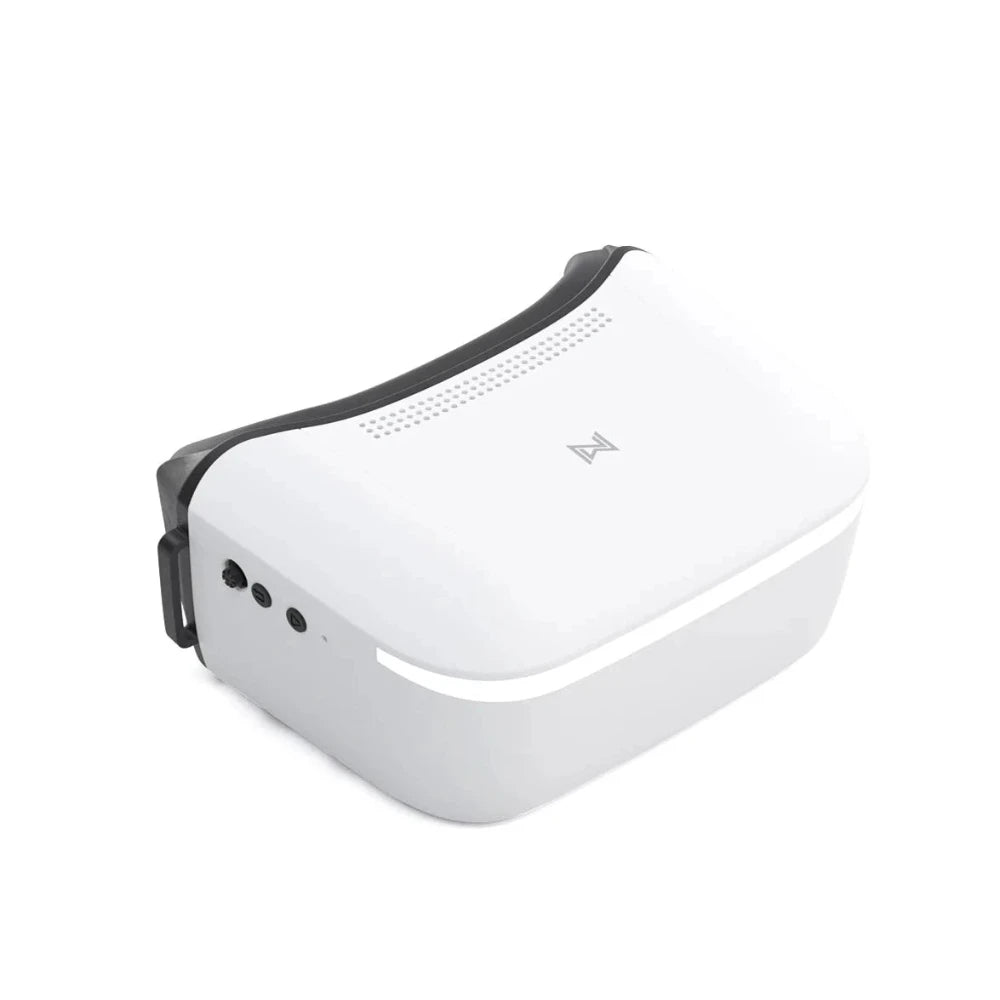

Walksnail Avatar Digital Goggles L

• Cost-Effective Entry into HD Systems: These goggles are designed to be an affordable option for those looking to get into HD FPV systems.

• Single-Screen HD Display: Features a 4.5-inch LCD screen with a resolution of 1920x1080, providing clear and high-resolution imaging

• Head-Tracking Functionality: Equipped with a nine-axis gyro module for head tracking, enhancing the immersive experience by allowing the camera to pan and tilt with your head movements.

• H.265 Encoding Technology: Delivers 1080P/60FPS video quality, ensuring a responsive and immersive FPV experience.

• Micro SD Card Slot: Supports up to 256GB, allowing you to record your flights easily.

• High-Performance Directional Antenna: Provides stable signal transmission with a gain of up to 4.9 dBi, enabling longer flight distances.

• Compatibility: Works with all current Walksnail VTX models and supports 2-6S voltage input, making it versatile for various drone batteries.

• Comfort and Design: Features a detachable lens design for different vision needs and a face mask made of premium polyurethane foam for comfort and reduced light leakage.

REQUIRED:

• (1) 2S - 6S LiPo Battery with XT60 Connector (or Barrel Connector)
  *XT60 to Barrel adapter cable included


• Model#: WN02-FP004
• Model: Avatar HD Goggles L
• Communication Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC: <30dBm / CE: <14dBm / SRRC: <20dBm / MIC: <25dBm

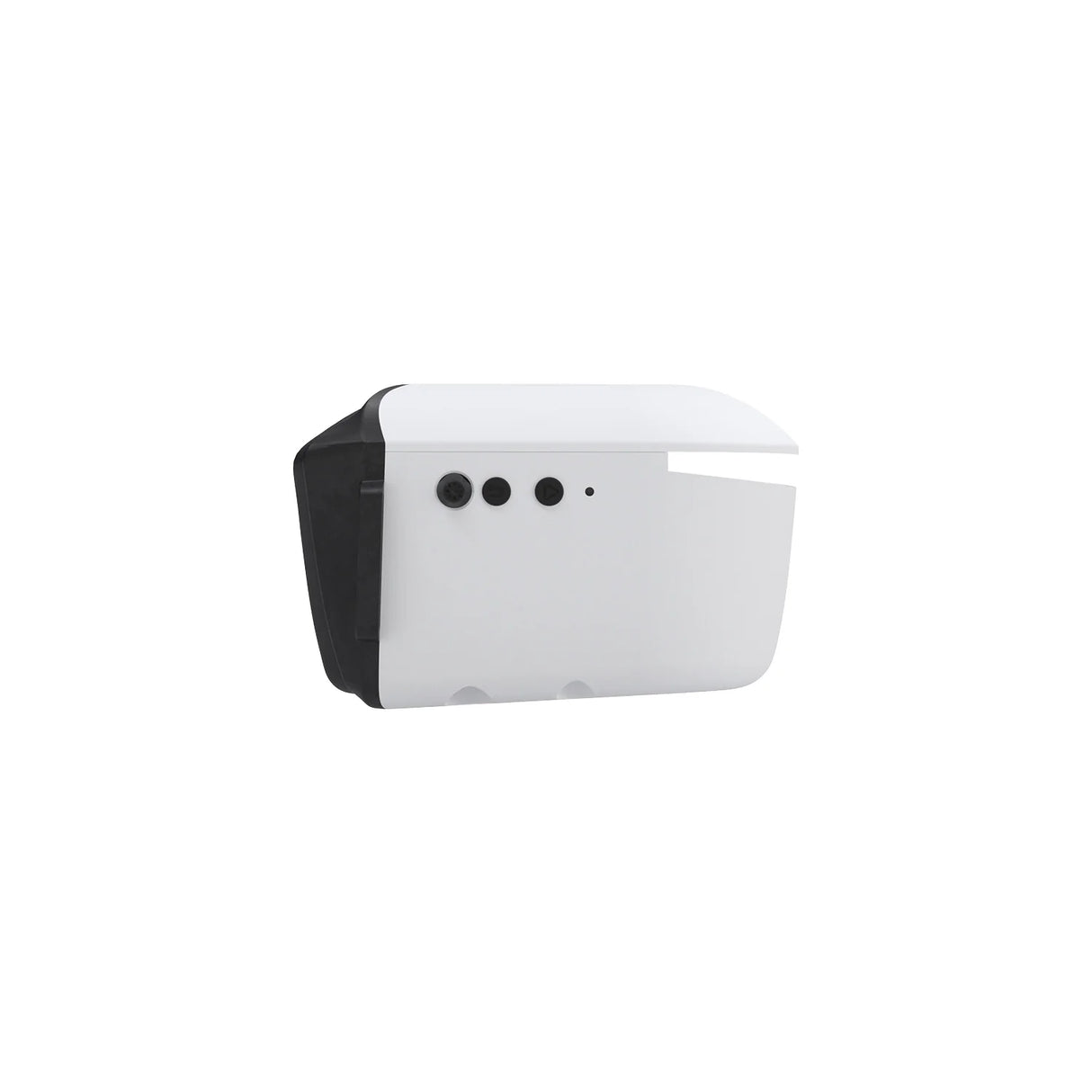

• I/O Interface: 4Pin 3.5mm Plug / DC5.5*2.1mm / Micro SD Card Slot
• Gyro: Nine-axis gyroscope
• Transmission Resolution: 1080p60fps / 720p60fps

• Code Rate: Max 50 Mbps
• Min. Latency: Average ~32ms
• Average Gain: 4.9dBi
• Polarization: LHCP
• Transmission Distance: >4km
• Channel: 8
• Screen Resolution: 1920*1080/60Hz
• Screen Material: LCD
• FOV: 75°
• Screen Size: 4.5 Inch
• Power Input: 6V-25.2V (2S-6S)
• SD Card: Support 256G
• Net Weight: 350±10g

HELPFUL LINKS:

• Manual

INCLUDES:

(1) Walksnail Avatar HD Goggles L
(1) Carrying Case
(1) XT60 to DC 5.5x2.1mm power cord
(1) Foam (PU)
(1) Lens Cleaning Cloth

The goggles are equipped with an in-house developed full-stack image transmission head tracking system. The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot's head movements. Paired with a gimbal, it sends signals via the image transmission system to control the camera's pan and tilt, providing pilots with a cockpit-like sensation.

The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.

It also supports PPM signal output to Radio Controllers via the Goggles L's 3.5mm headphone TX connector, which in turn outputs to the drone.

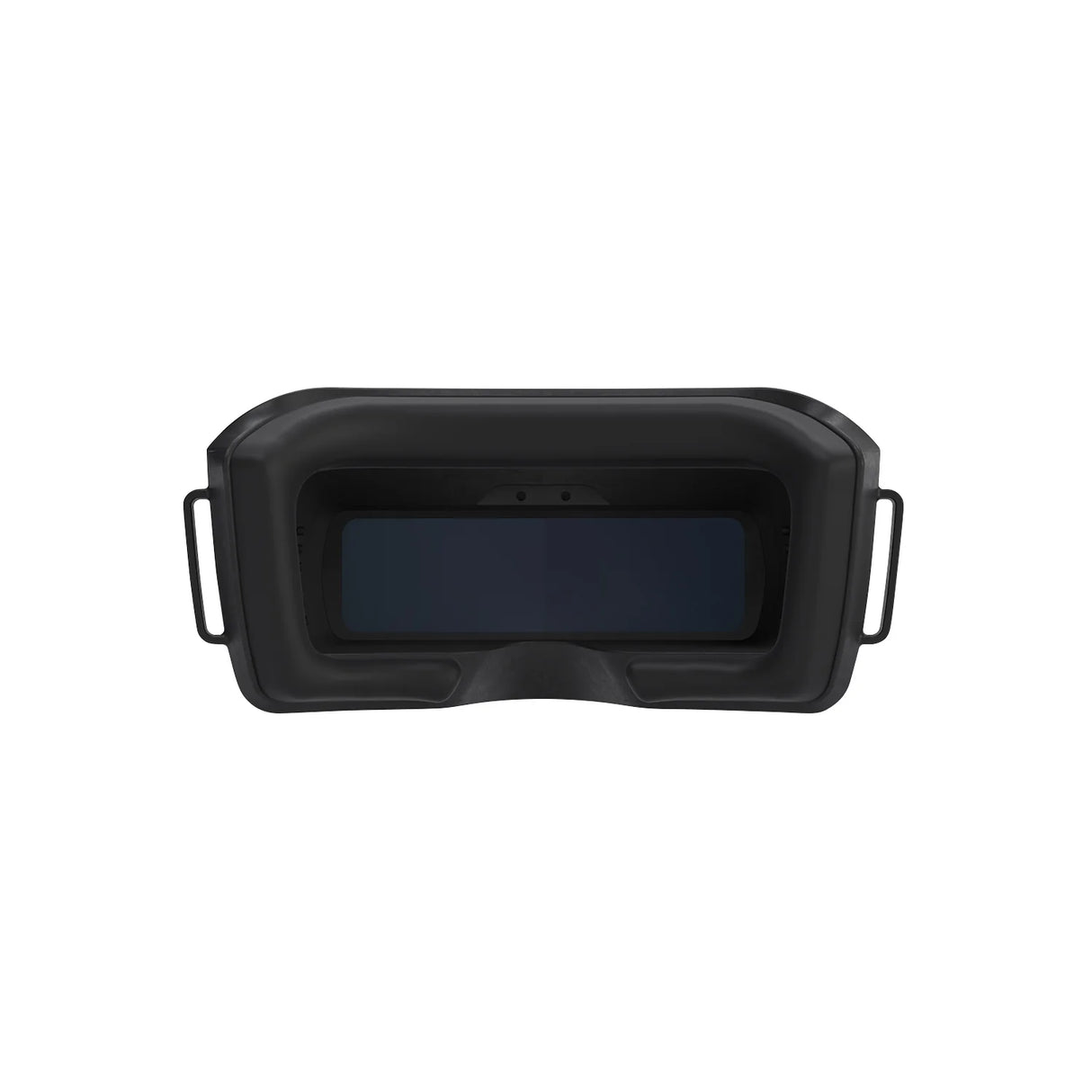

Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.

With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.

Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.

Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.

The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.

Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.

The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.

Utilizing premium polyurethane foam, the goggles' face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.

The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.
